Figure 4

From: Attribution of changes in the trend and temporal non-uniformity of extreme precipitation events in Central Asia

Figure 4

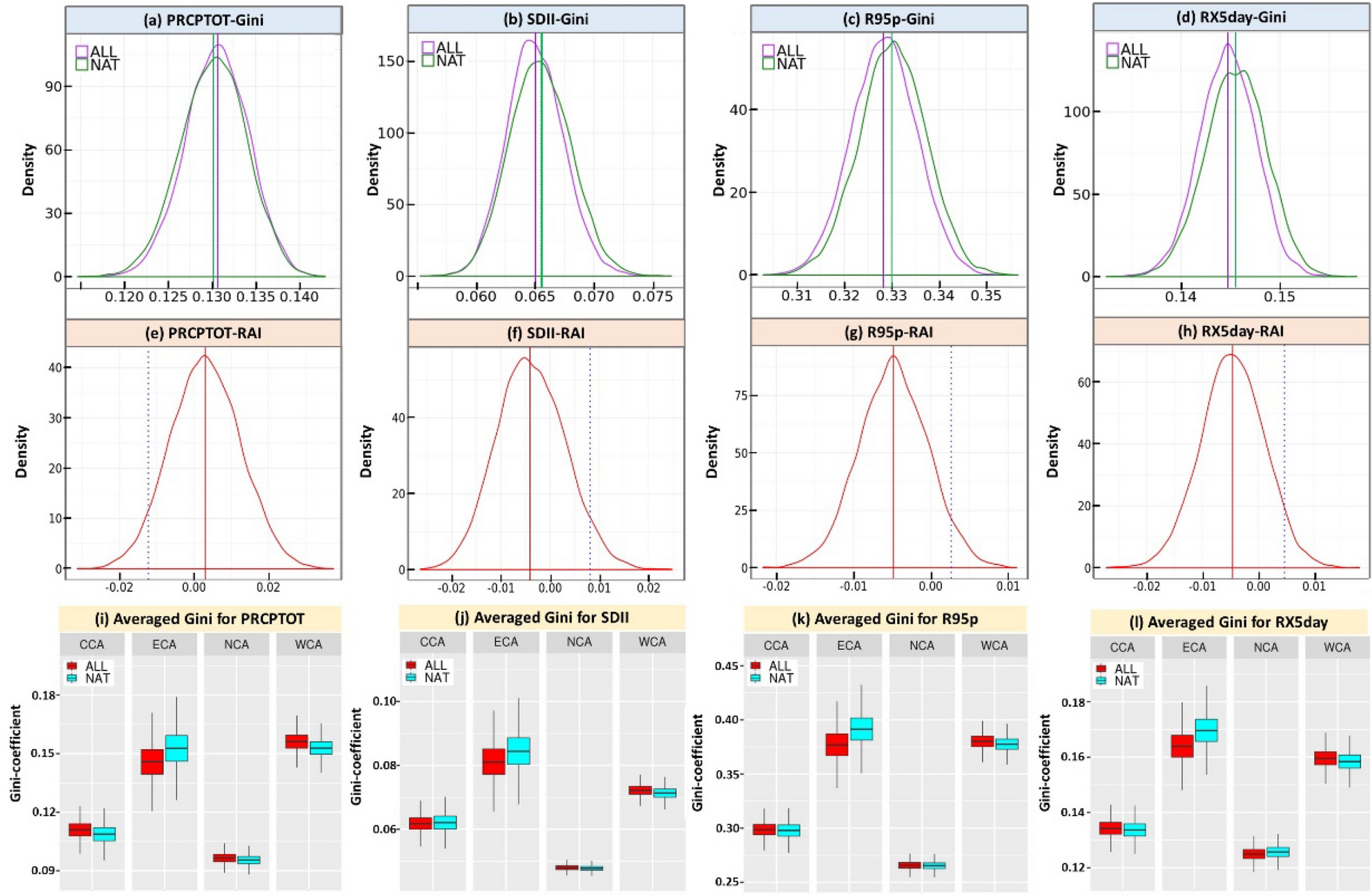

The probability distribution of the resampled averaged Gini coefficients for the (a) PRCPTOT, (b) SDII, (c) R95p and (d) RX5day, the distribution of the RAI values for the (e) PRCPTOT, (f) SDII, (g) R95p and (h) RX5day, and the boxplots of the resampled averaged Gini-coefficients for the (i) PRCPTOT, (j) SDII, (k) R95p and (l) RX5day regarding 4 sub-regions in CA, CMIP5 ALL and NAT scenario obtained by the bootstrapping procedure. The dash- lines in figures (a–d) represent the median (best estimate) value of the Gini-coefficients. The solid lines in figures (e–h) demonstrate the median (best estimate) value of the RAI and the dash- line indicates the 95th percentile value. The subfigures were done in the software R 4.0.2 (https://cran.r-project.org/bin/windows/), and then the subfigures were merged by using the Microsoft PowerPoint 2013 software (https://www.microsoft.com/).
