From: Attribution of changes in the trend and temporal non-uniformity of extreme precipitation events in Central Asia

Figure 5

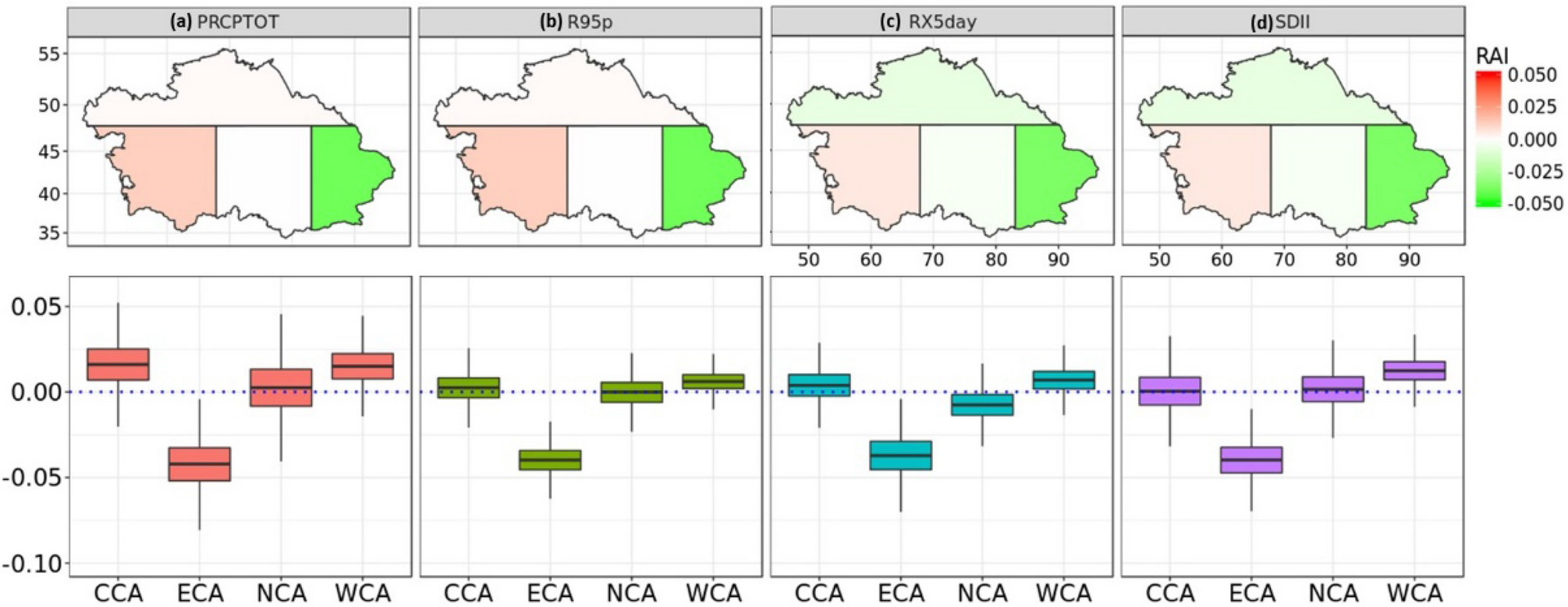

The figure on the upper panel shows the spatial distribution of the best temporal RAI estimates for the (a) PRCPTOT, (b) SDII, (c) R95p and (d) RX5day for 4 sub-regions in CA. The bottom panel indicates the corresponding uncertainty range (5th to 95th percentile) of the temporal RAI estimates for 4 sub-regions in CA. The horizontal lines in the box demonstrate the best estimate (i.e. median value). The subfigures were done in the software R 4.0.2 (https://cran.r-project.org/bin/windows/), and then the subfigures were merged by using the Microsoft PowerPoint 2013 software (https://www.microsoft.com/).
