Figure 5

From: Reservoir computing based on a silicon microring and time multiplexing for binary and analog operations

Figure 5

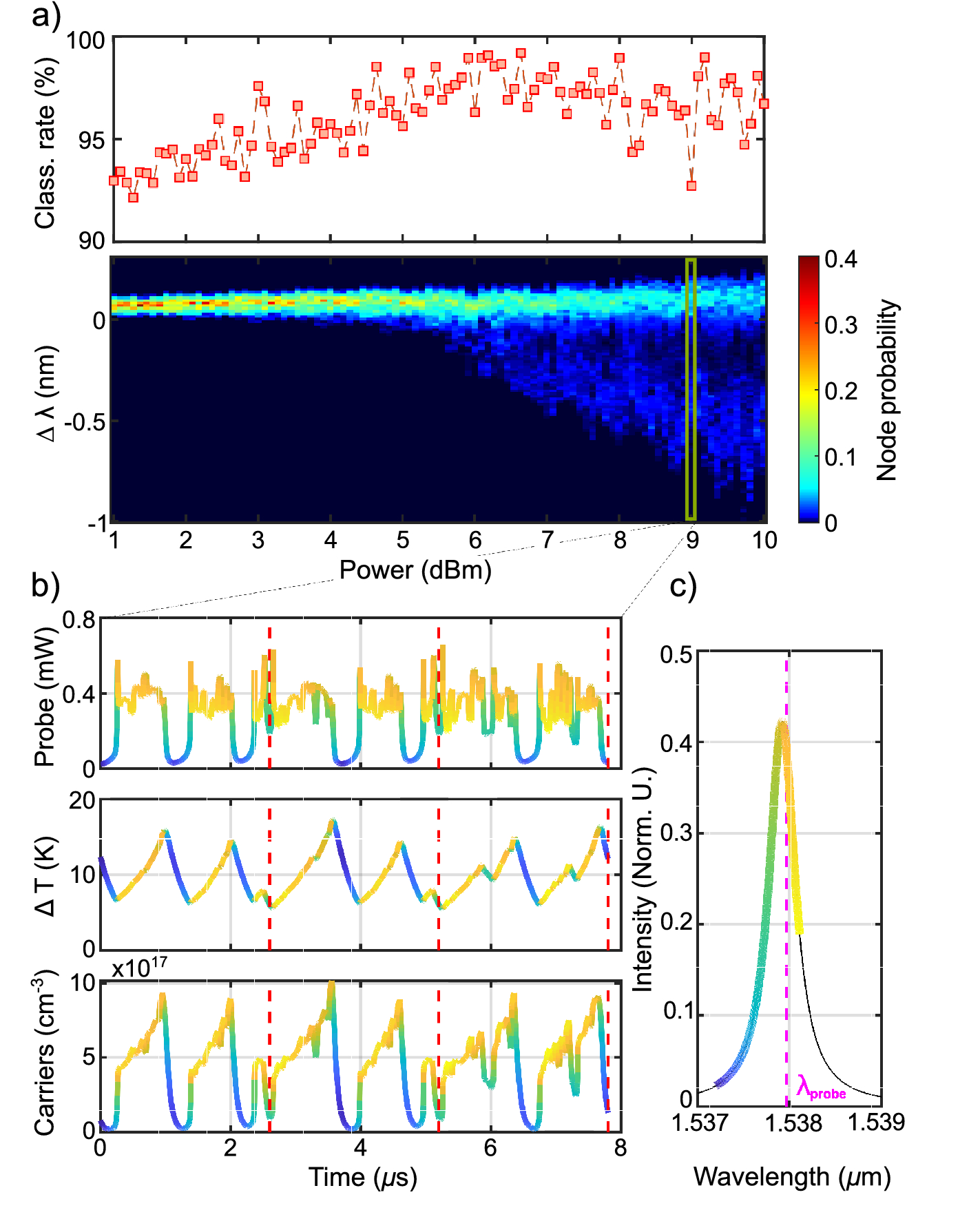

(a) Top: numerical simulation of the Iris dataset classification rate as a function of the input power. Bottom: probability distribution of the virtual node detuning \(\Delta \lambda\) as function of the input pump power. (b) Simulated probe power at the Drop port of the MR (top), temperature variation (middle) and free carrier concentration for \(P_p=9\,{\text {dBm}}\). The red dashed lines mark the injection times of three different flower samples. The color code indicates the instantaneous detuning of the probe, whose relation with the Drop intensity is shown in panel (c). (c) Normalized intensity at the Drop port of the MR as a function of wavelength. The dashed line marks the wavelength of the probe laser. The color code is used to label the instantaneous detuning of the time traces in panel (b).
