From: Application of alpha1-antitrypsin in a rat model of veno-arterial extracorporeal membrane oxygenation

Figure 5

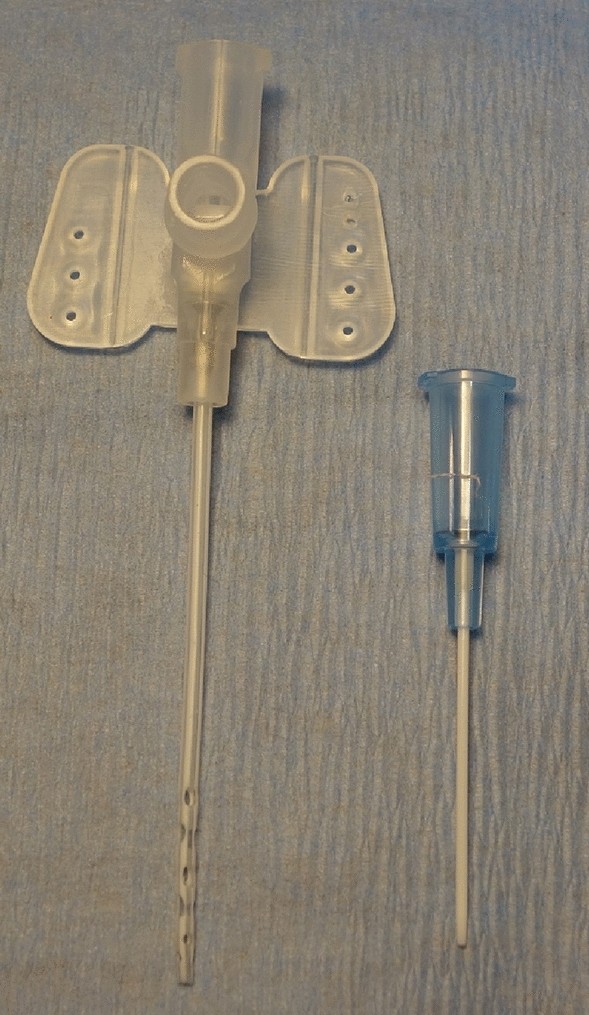

Venous and arterial ECMO cannula. The modified multi-orifice 17 G cannula (1.5 mm, B. Braun, cannula with white connector) was inserted into the internal jugular vein and carefully moved into the right atrium for venous drainage. The oxygenated blood from the ECMO was returned to the femoral artery via a 22 G catheter (0.9 mm, Terumo, cannula with blue connector).
