Figure 5
From: Ground motion baseline analysis of the Cheshire UK GeoEnergy Observatory

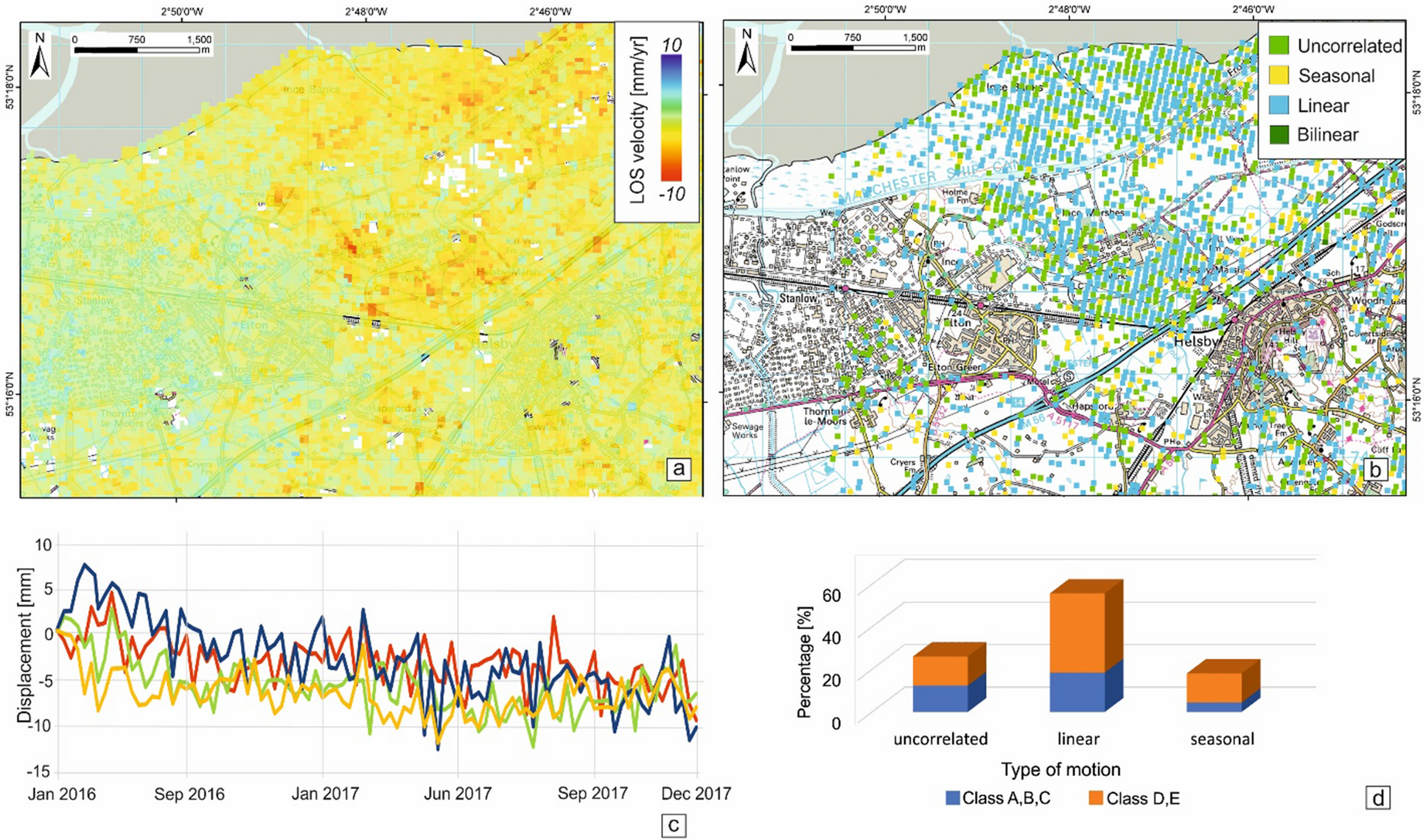

Ground stability condition for the Cheshire Observatory during 2016–2017. (a) ISBAS results from Sentinel-1 data, (b) classification of the unstable InSAR time series, (c) time series for four ISBAS points within the study area and (d) percentage of type of motion according to the GeoSure susceptibility classes in the compressible ground and running sand susceptibility layers. Contains Ordnance Survey data, Crown copyright and database right 2018, license number 100021290 EUL. Contains British Geological Survey materials, UKRI 2021. Contains Terra Motion Limited 2017 data.
