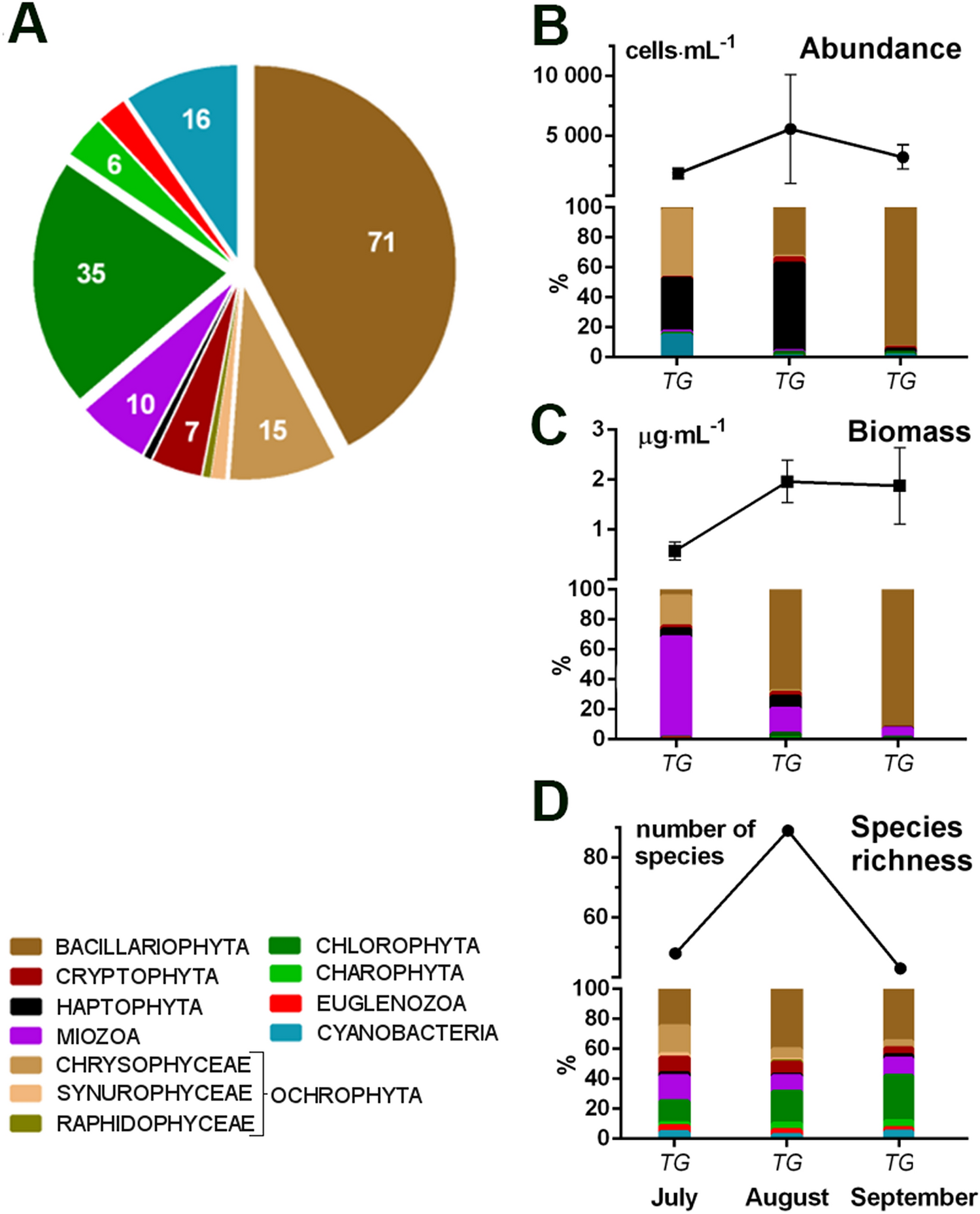

Community composition of major taxonomic groups of phytoplankton in Lake Shchuchie defined by light microscopy. (A) Contribution of identified species belonging to major taxonomic groups; (B) total and relative abundance of taxonomic groups; (C) total and relative biomass of taxonomic groups; (D) total and relative species’ number per taxonomic groups. Mean values ± Std Dev.
