From: Beyond multi view deconvolution for inherently aligned fluorescence tomography

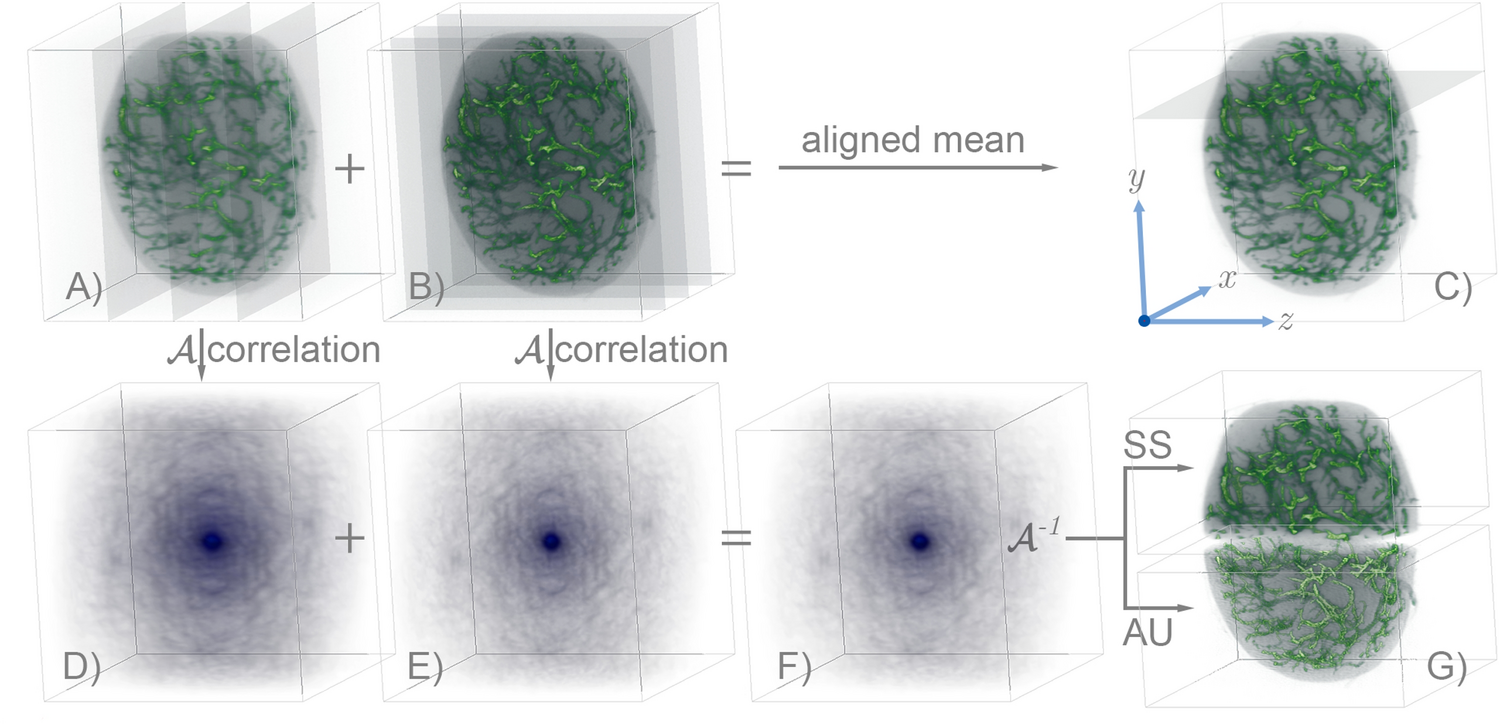

Reconstruction pipeline. (A) Rendering of the reference view taken at \(\varphi = 0^\circ\). The planes indicate the xy-camera acquisition along the z-scanning direction. (B) Orthogonal detection by rotating the sample at \(\varphi = 90^\circ\). (C) Aligned-average of 12 measurements. The axes are chosen according to the reference view (x-lateral, y-transverse, z-longitudinal). (D) Auto-correlation of the view at \(0^\circ\). (E) \({\mathcal {A}}\) of the view at \(90^\circ\). (F) \({\mathcal {A}}\) averaged through 12 angles. (G) Reconstructions obtained by using deauto-correlation methods. For visual comparison, the upper part shows the result using the Schultz-Snyder protocol. The bottom one compares it with that of the Anchor-Update method.
