Figure 3
From: Beyond multi view deconvolution for inherently aligned fluorescence tomography

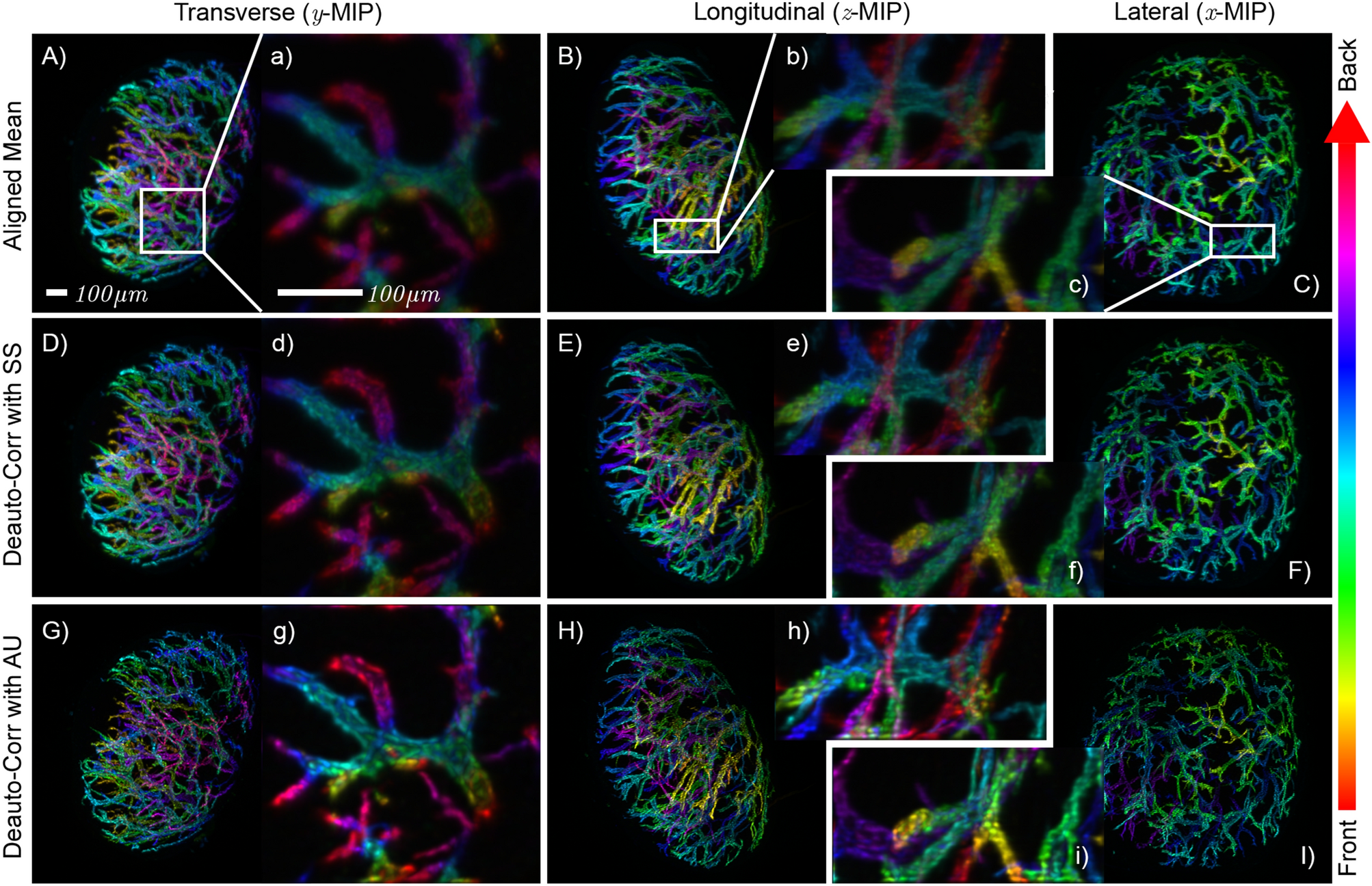

Methods comparison for the reconstruction of the vasculature in a mouse popliteal lymph node. The quality of the first row improves in the central and in the bottom rows. Results of aligned mean shown in a transverse (A), longitudinal (B) and lateral (C) direction. The shown data are color-encoded maximum intensity projection (MIP)16 along each spatial coordinate. In all these MIPs, the color indicates the depth at which the corresponding feature is located. The small letters indicate the cropped volume. The cropped regions located within the whole specimen are framed with white boxes. The scale bar is \(100 \mu m\). (A, a) Transverse view of the volume \(\overline{o}_\mu\) averaged and aligned by cross-correlation (Rendered in Fig.1, viewed from the top). (B, b) Longitudinal (or side) view projection. (C, c) Lateral (or front) view. (D, d) Transverse, (E, e) longitudinal, and (F, f) lateral projections of the volume \(\overline{o}_\rho\) reconstructed with SS. (G, g) Transverse, (H, h) longitudinal, and (I, i) lateral projections of the volume \(\overline{o}\) deconvolved with AU.
