Figure 1
From: Autonomous navigation of a magnetic colonoscope using force sensing and a heuristic search algorithm

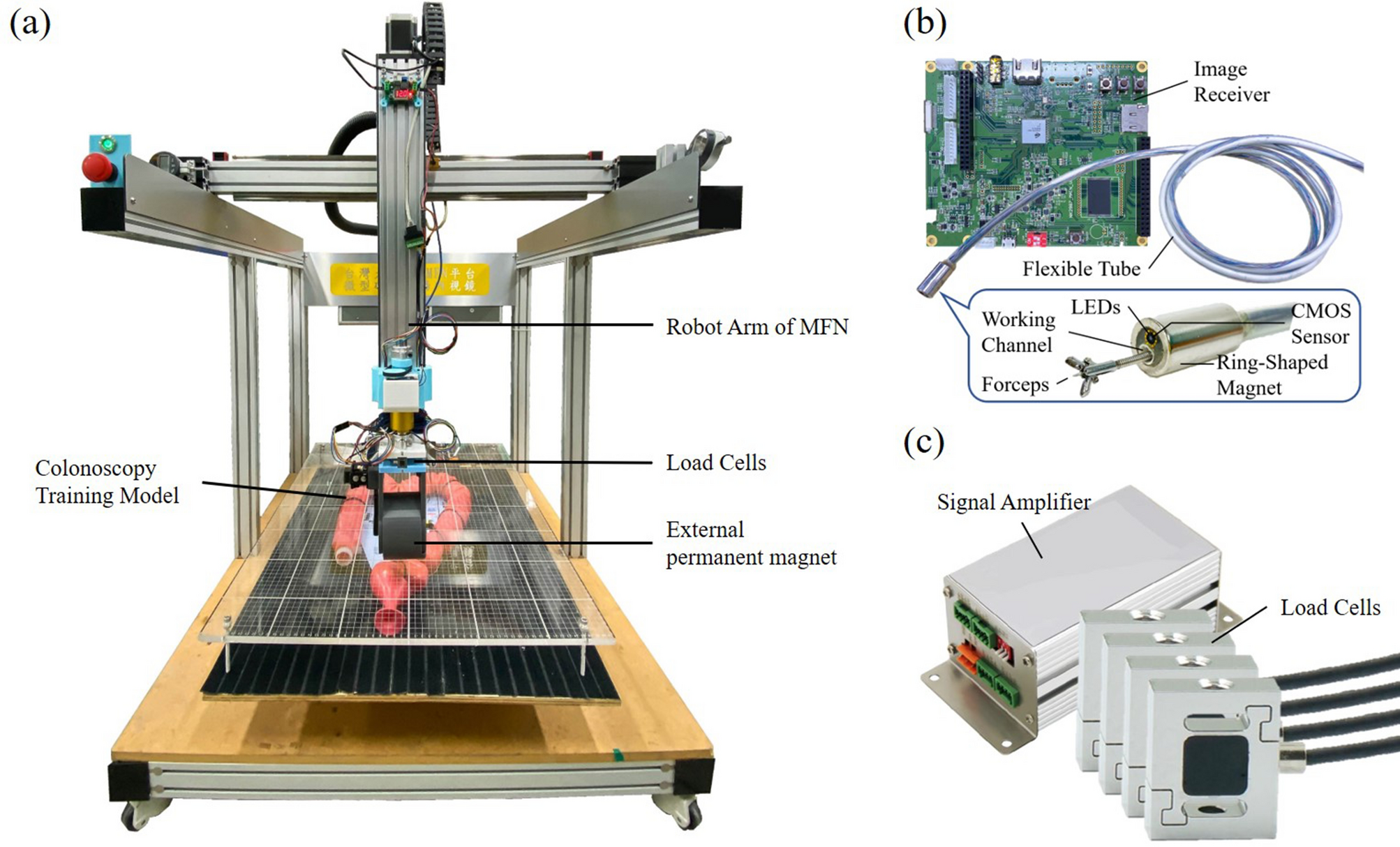

The architecture of magnetic-assisted colonoscopy (MAC) system. (a) Magnetic field navigator (MFN). (b) Disposable magnetic colonoscope (MC) and its receiver. (c) Tension/compression load cells and their signal amplifier.
