Figure 10
From: Autonomous navigation of a magnetic colonoscope using force sensing and a heuristic search algorithm

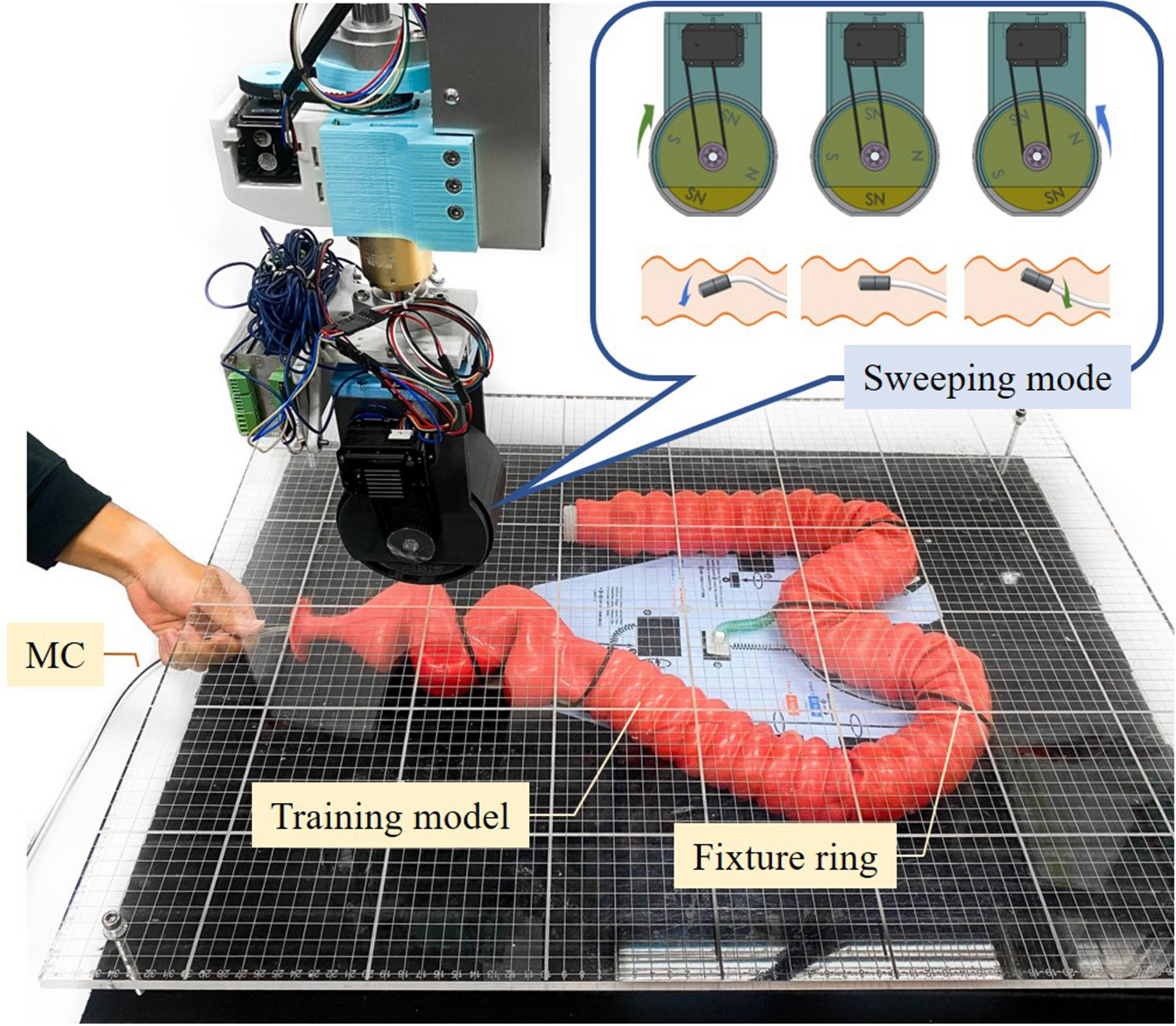

Experimental setup. A flexible colonoscope training model was placed on the MFN platform and covered with a clear acrylic board. While the EPM is guiding the MC, the illustration of EPM in sweeping mode is also presented.
