Figure 2
From: Autonomous navigation of a magnetic colonoscope using force sensing and a heuristic search algorithm

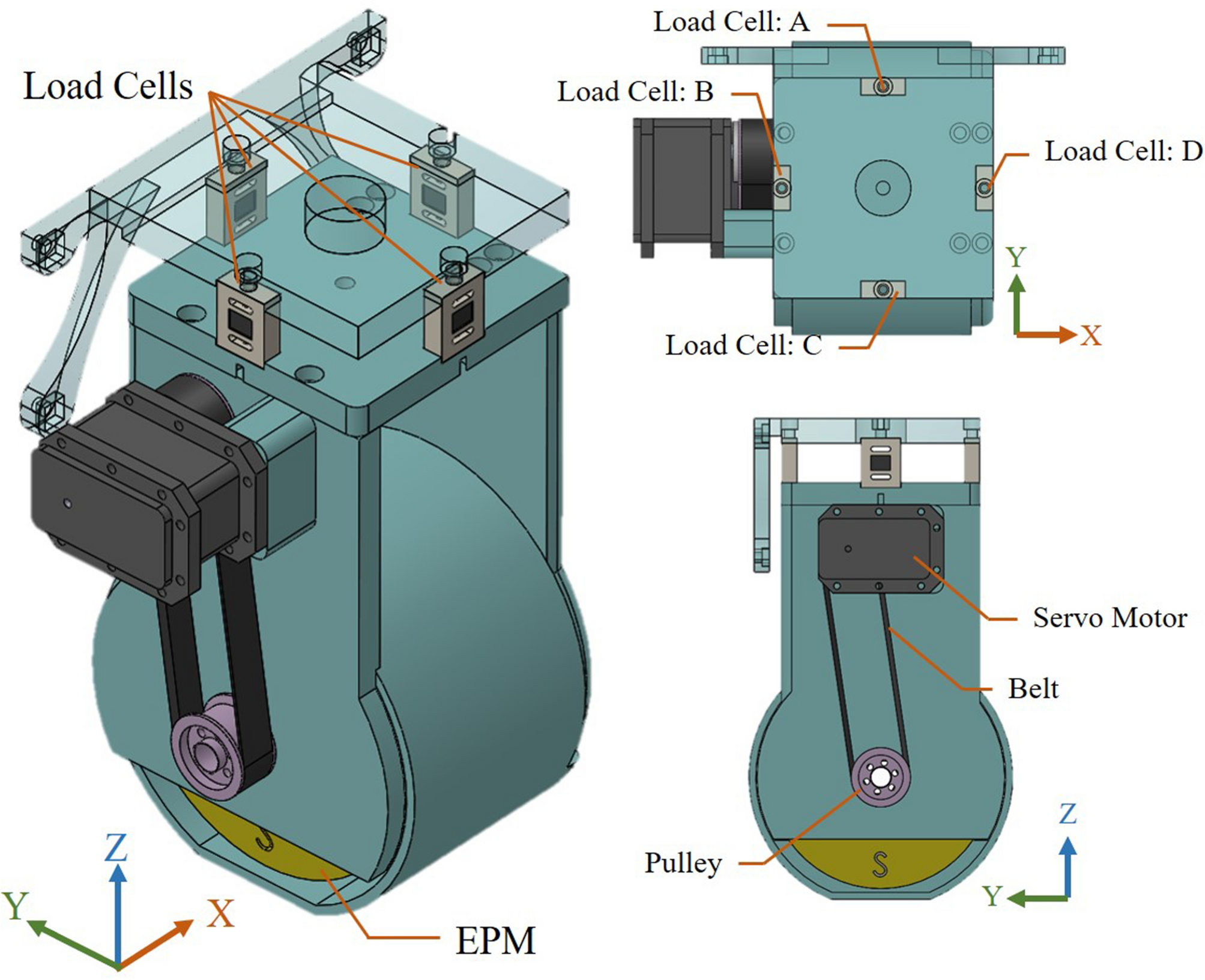

Schematic illustration showing the architecture of proposed force sensing system, featuring load cells installed between the robot arm and the container holding a large permanent magnet.
