Figure 2
From: Disentangling increasing compound extremes at regional scale during Indian summer monsoon

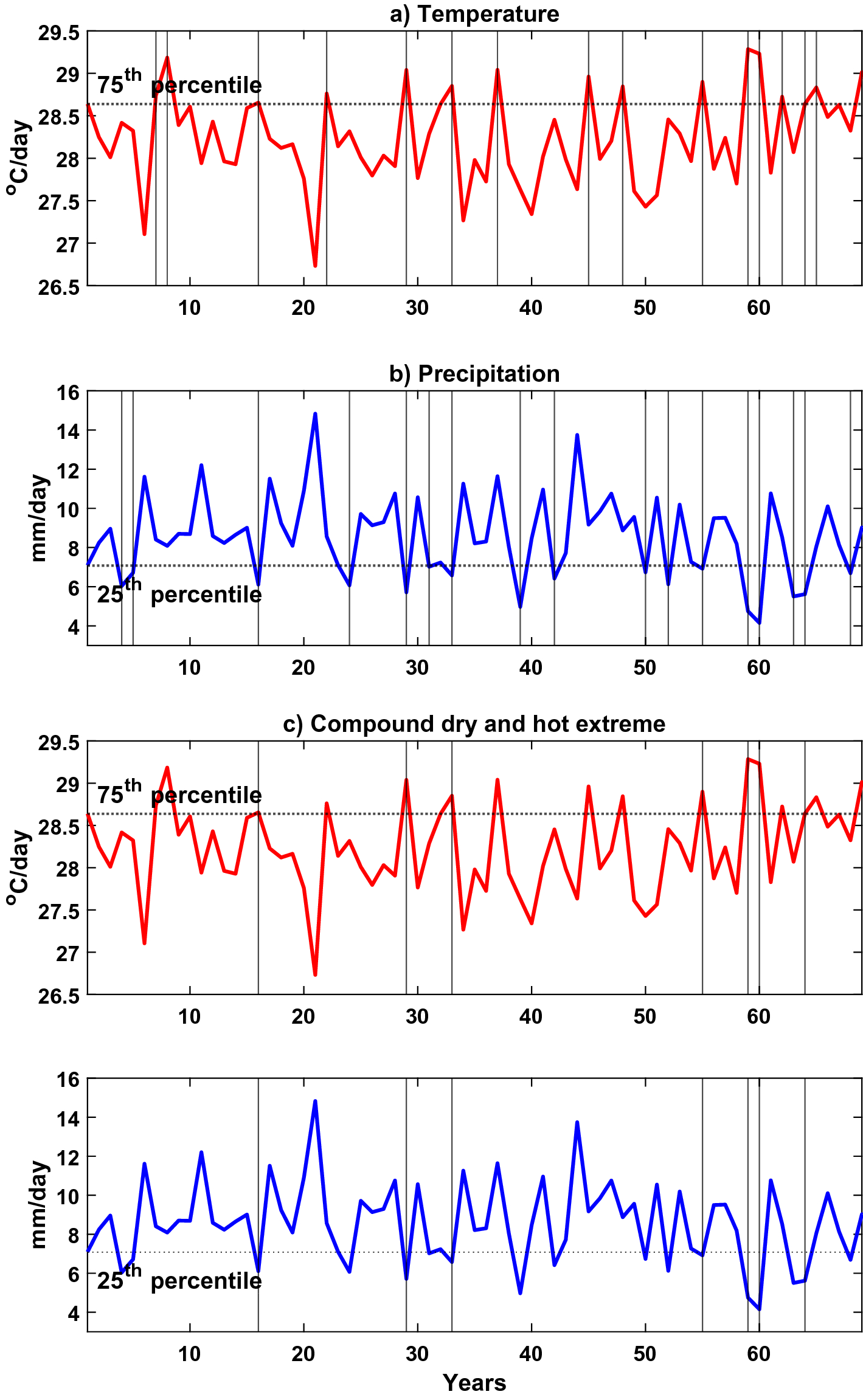

Illustration of a typical compound dry and hot extreme (c) and its comparison with univariate events (a) Temperature > 75th percentile and (b) Precipitation < 25th percentile. The vertical and horizontal lines are shown to visualize an event and the threshold used to define the event).
