Figure 3
From: Disentangling increasing compound extremes at regional scale during Indian summer monsoon

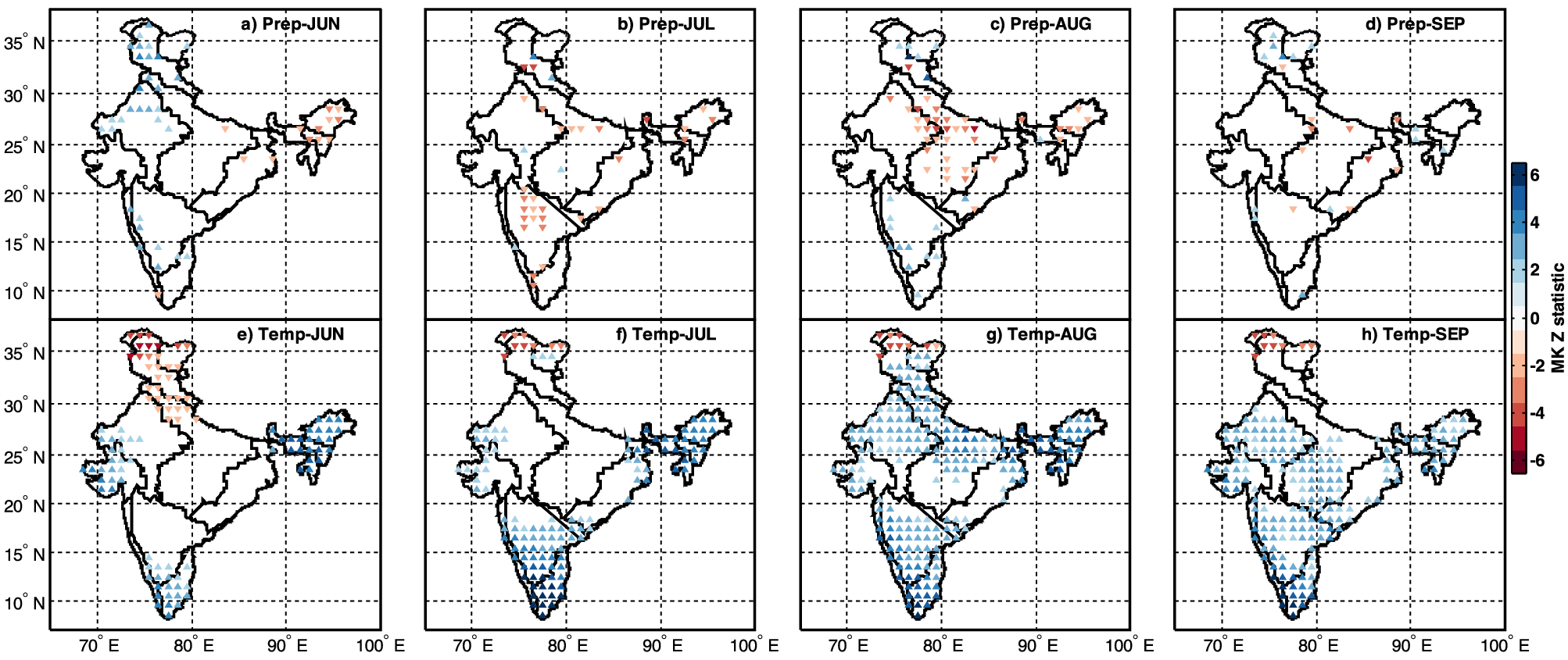

Geographical representation of trends in the monthly precipitation (a–d) and temperature (e–h) in Indian summer monsoon (June, July, August and September) of 1951–2019 across the homogenous regions of India. Statistical significance is conducted using the non-parametric Mann–Kendall (MK) test. Grid points with a 95% confidence level are only indicated with triangles. The Upper and Lower triangles indicate increasing and decreasing trend, respectively. Colorbar represents variation in the MK Z statistic. This figure is generated using Mapping Toolbox in MATLAB R 2020b (Version 9.9 https://in.mathworks.com/products/mapping.html).
