Figure 6

From: Phase stable swept-source optical coherence tomography with active mode-locking laser for contrast enhancements of retinal angiography

Figure 6

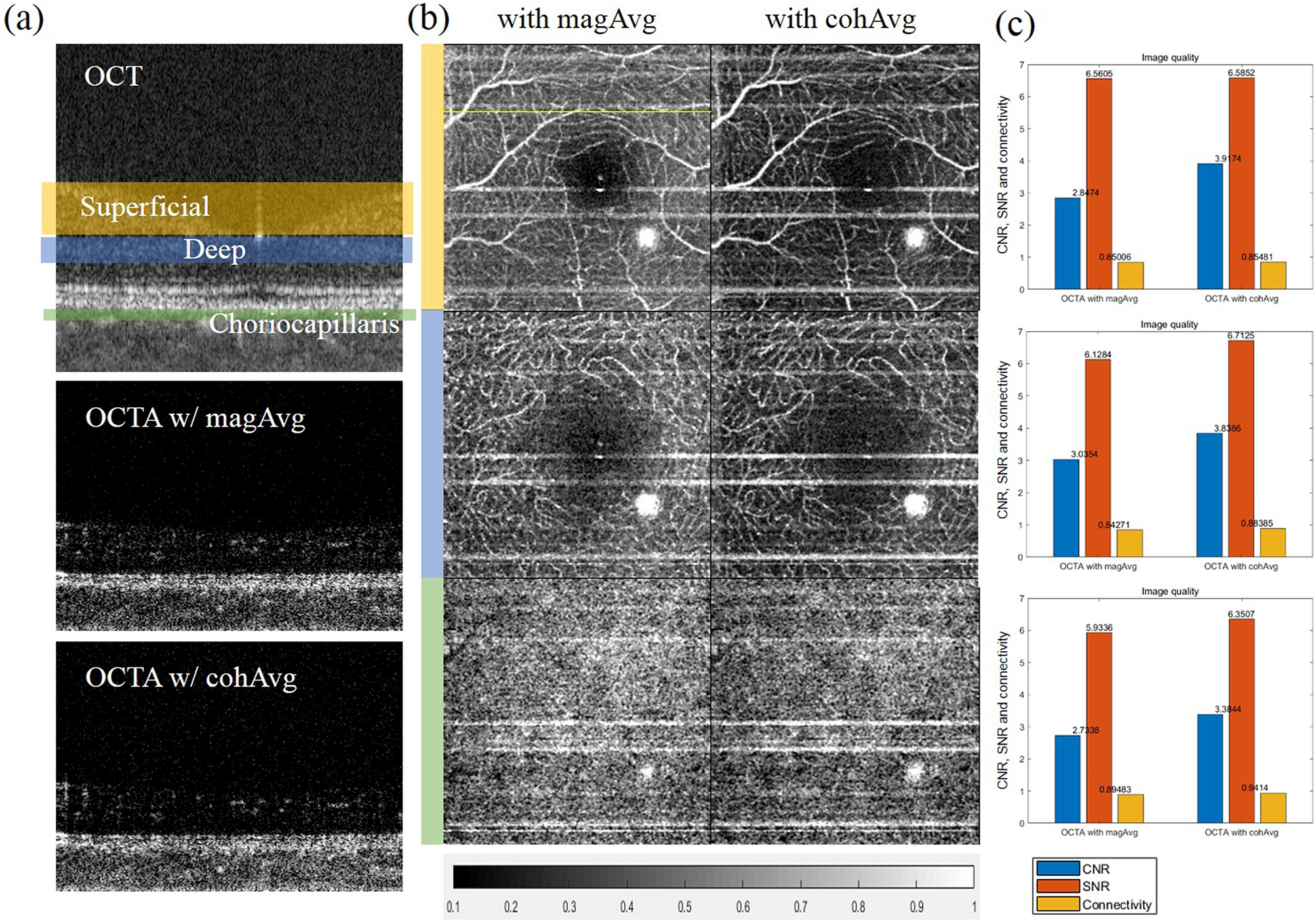

Assessment of en face OCTA images for human eye obtained by magnitude averaging (magAvg) or coherent averaging (cohAvg). (a) Cross-sectional OCT and OCTA images with magAvg and cohAvg. (b) En face maximum intensity projections (MIPs) over the specific depths (superficial, deep, choriocapillaris) of OCTA images. (c) Evaluations of the image quality (CNR, SNR, and connectivity) of images (b).
