Figure 3

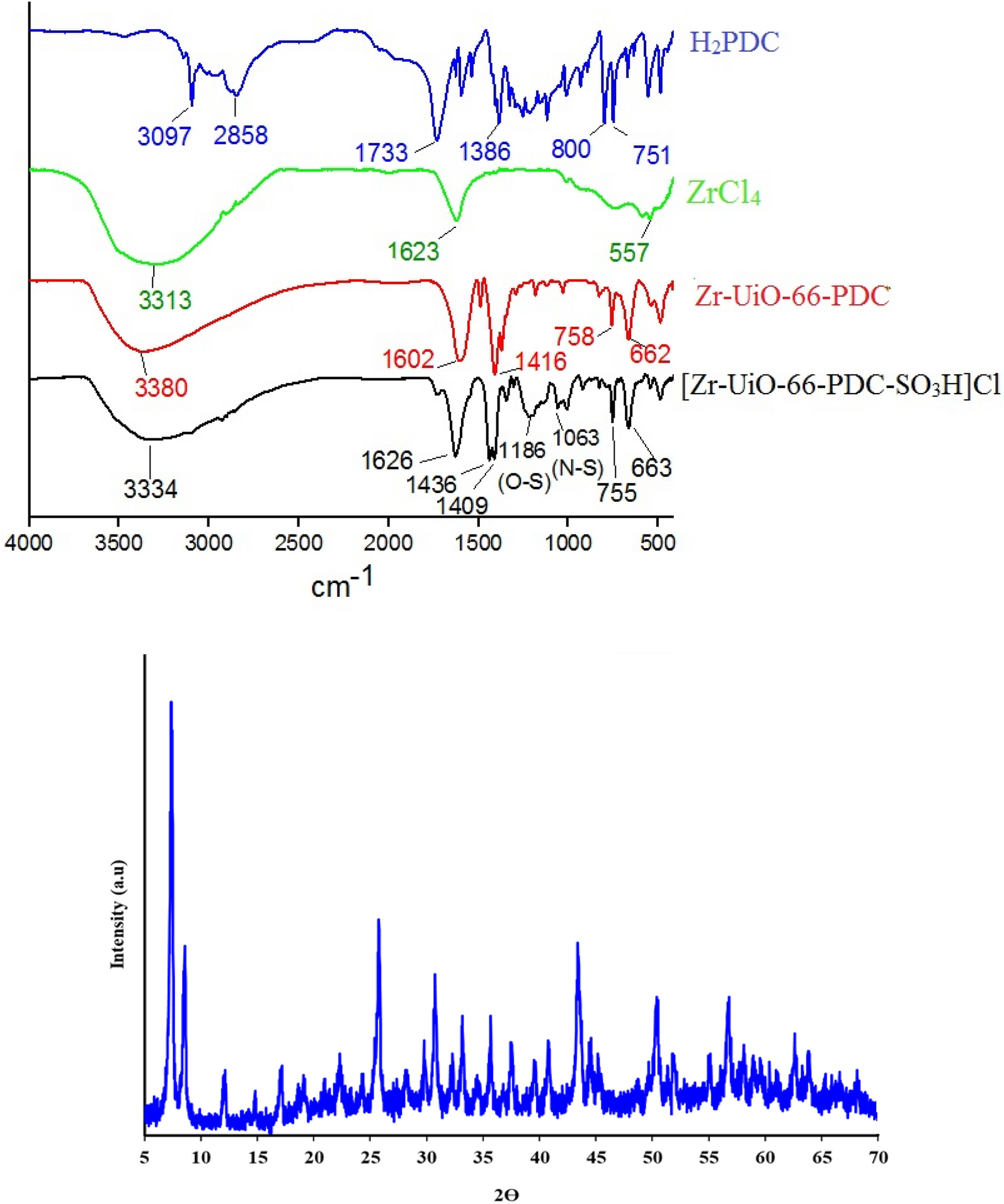

Up: FT-IR spectra of pyridine-2,5-dicarboxylic acid (H2PDC), ZrCl4, Zr-UiO-66-PDC and [Zr-UiO-66-PDC-SO3H]Cl. Down: PXRD pattern of the [Zr-UiO-66-PDC-SO3H]Cl.
Figure 3 | Scientific Reports
Up: FT-IR spectra of pyridine-2,5-dicarboxylic acid (H2PDC), ZrCl4, Zr-UiO-66-PDC and [Zr-UiO-66-PDC-SO3H]Cl. Down: PXRD pattern of the [Zr-UiO-66-PDC-SO3H]Cl.
