Figure 2 | Scientific Reports

Figure 2

From: Regional grey matter microstructural changes and volume loss according to disease duration in multiple sclerosis patients

Figure 2

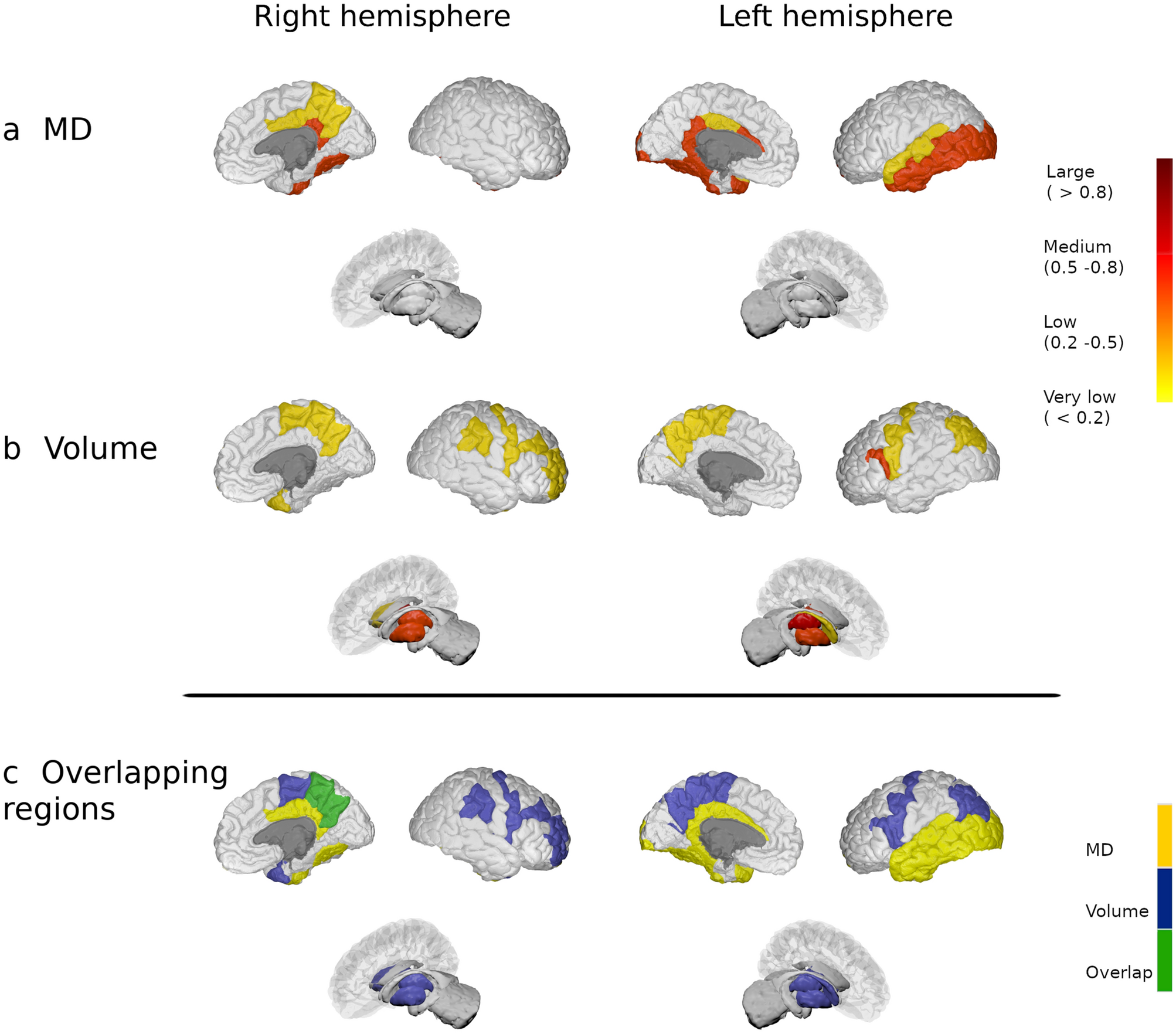

Modifications in patients with 5 to 15 years of disease duration. Differences in the grey matter mean diffusivity (a) and in volume (b) between MS patients from the MS2 group and HC. The colour gradient from yellow to red indicates the effect size ranges. The bottom figure shows the changes in MD (in yellow), volume (in blue) and their overlap (in green). The figure was generated using BrainPainter software50.
