From: Effect of education on functional network edge efficiency in Alzheimer’s disease

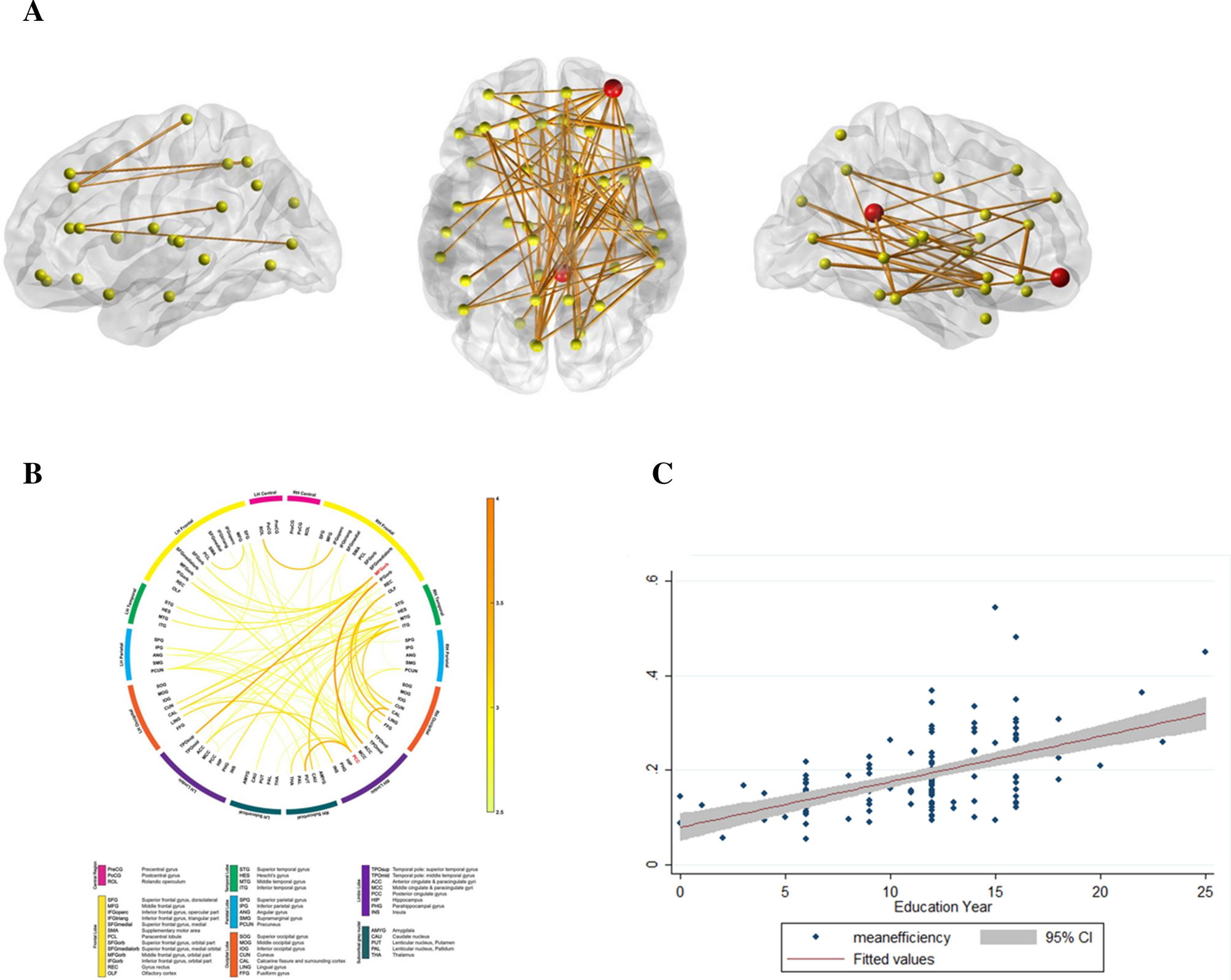

(A) In the late aMCI group, a sub-network showed a positive correlation between years of education and RSFN edge efficiency. The red circles represent the hub regions, which are located in the orbital part of the right middle frontal gyrus (MFGorb), and the right posterior cingulate gyrus (PCC). (B) Connectogram showing the sub-network. The thickness and colors represents the t-statistics computed from simple slope analyses. Hub regions are presented in red color. (C) Correlation between education and mean RSFN edge efficiency of the sub-network in the late aMCI group. aMCI amnestic mild cognitive impairment.
