From: In situ identification and G4-PPI-His-Mal-dendrimer-induced reduction of early-stage amyloid aggregates in Alzheimer’s disease transgenic mice using synchrotron-based infrared imaging

Figure 2

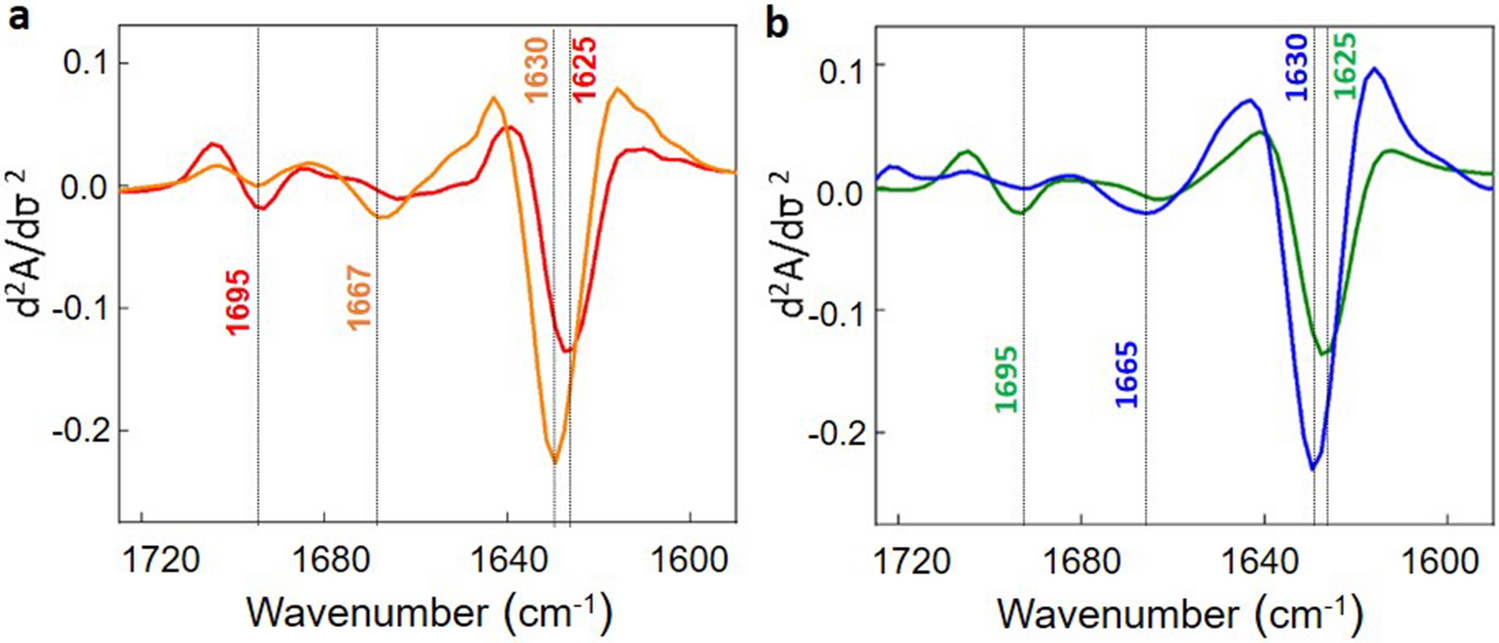

Average second derivative spectra of the amide I region of (a) Aβ(1–40) and (b) Aβ(1–42) amyloid aggregates generated in vitro: fibrils (orange and blue respectively) generated at pH 7.4 and Aβ granular non-fibrillary aggregates (red and green respectively) generated at pH 5.5. The absorbance spectra were normalized for the amide I area prior to derivation. Origin 9.1 and Microsoft power point 2016 software were used for graphical representation.
