Figure 4
From: CD8+ T lymphocyte is a main source of interferon-gamma production in Takayasu’s arteritis

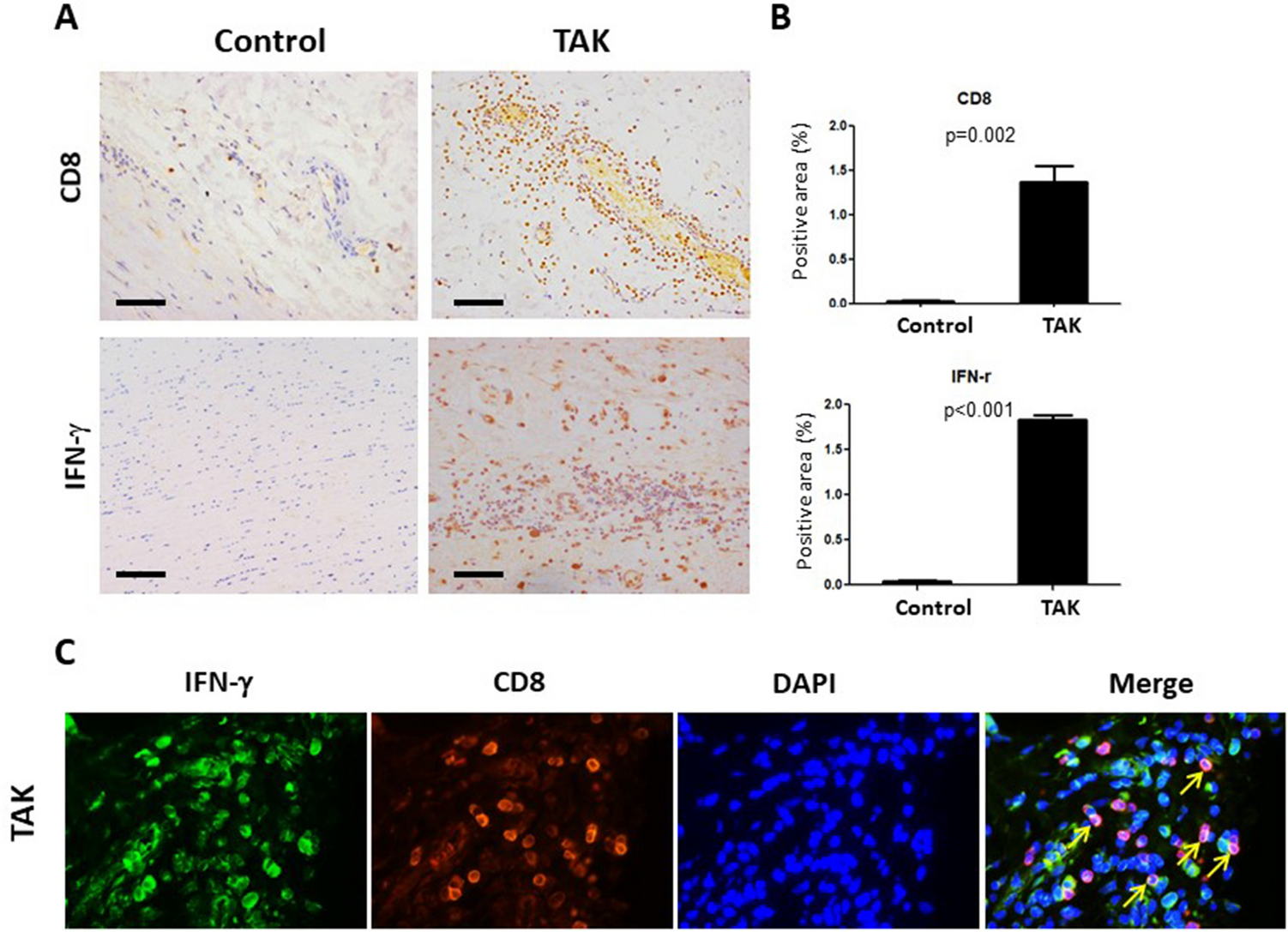

CD8 and IFN-γ expressions in the aortic wall of TAK patients. (A) CD8 and IFN-γ staining in the aortic wall of TAK patients and control group. (scale bars, 100 μm; n = 3 in each group). (B) The quantification of CD8 and IFN-γ staining in the two groups (n = 3 in each group). (C) Immunofluorescence staining stained for CD8 (green) and IFN-γ (red) in the aortic wall of TAK patients. Nuclei were shown in blue with 4′,6-diamidino-2-phenylindole (DAPI) staining.
