Figure 2

From: Insecticide resistance and behavioural adaptation as a response to long-lasting insecticidal net deployment in malaria vectors in the Cascades region of Burkina Faso

Figure 2

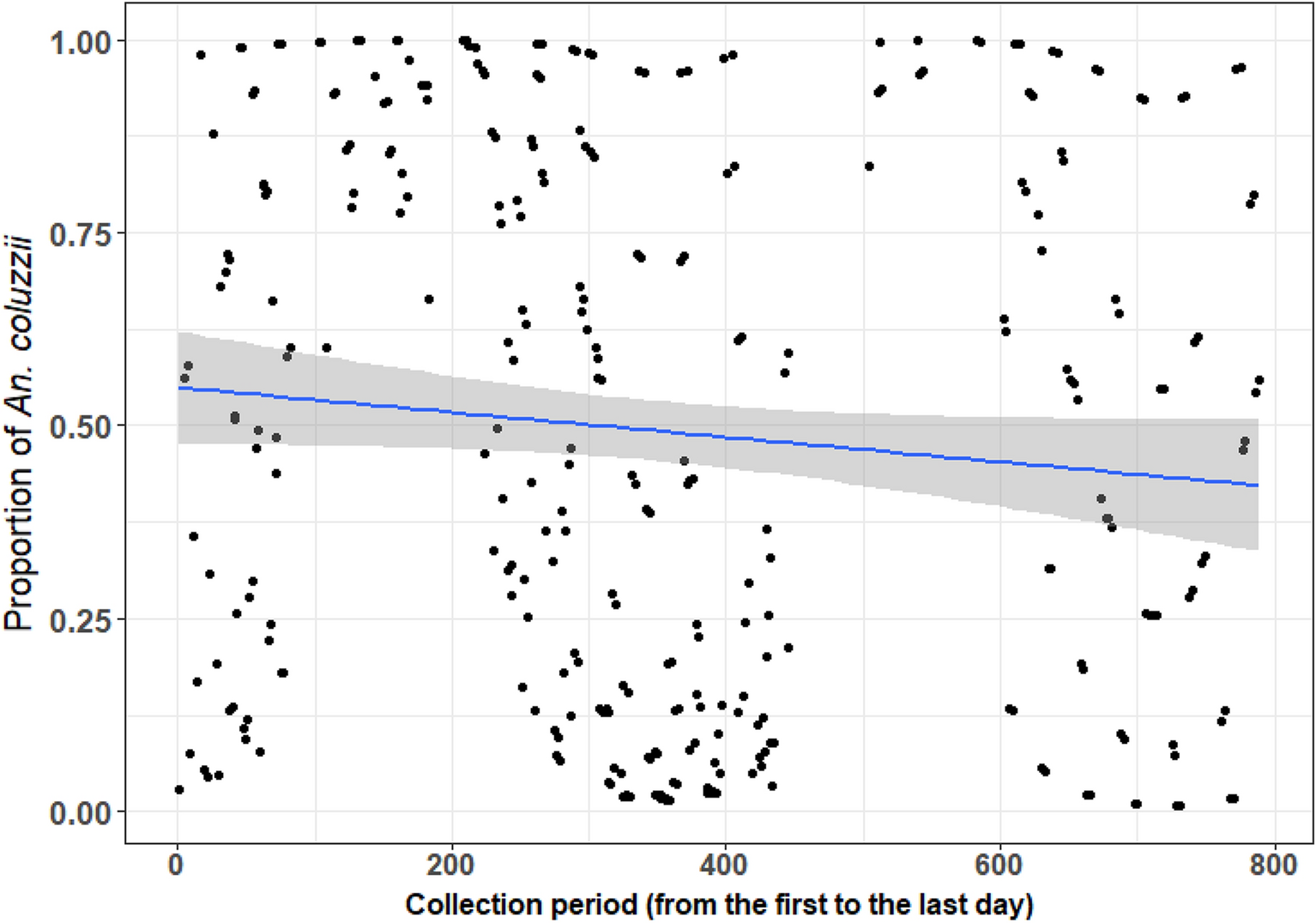

Mean predicted long-term trends in Anopheles coluzzii proportion within the An. gambiae complex from 12 villages in southwestern Burkina Faso. The blue line represents the predicted regression line from a model accounting for additional variation due to village and trapping location (inside and outdoors houses), with the grey-shaded area indicating the 95% confidence intervals.
