Figure 1 | Scientific Reports

Figure 1

From: Exploring how microbiome signatures change across inflammatory bowel disease conditions and disease locations

Figure 1

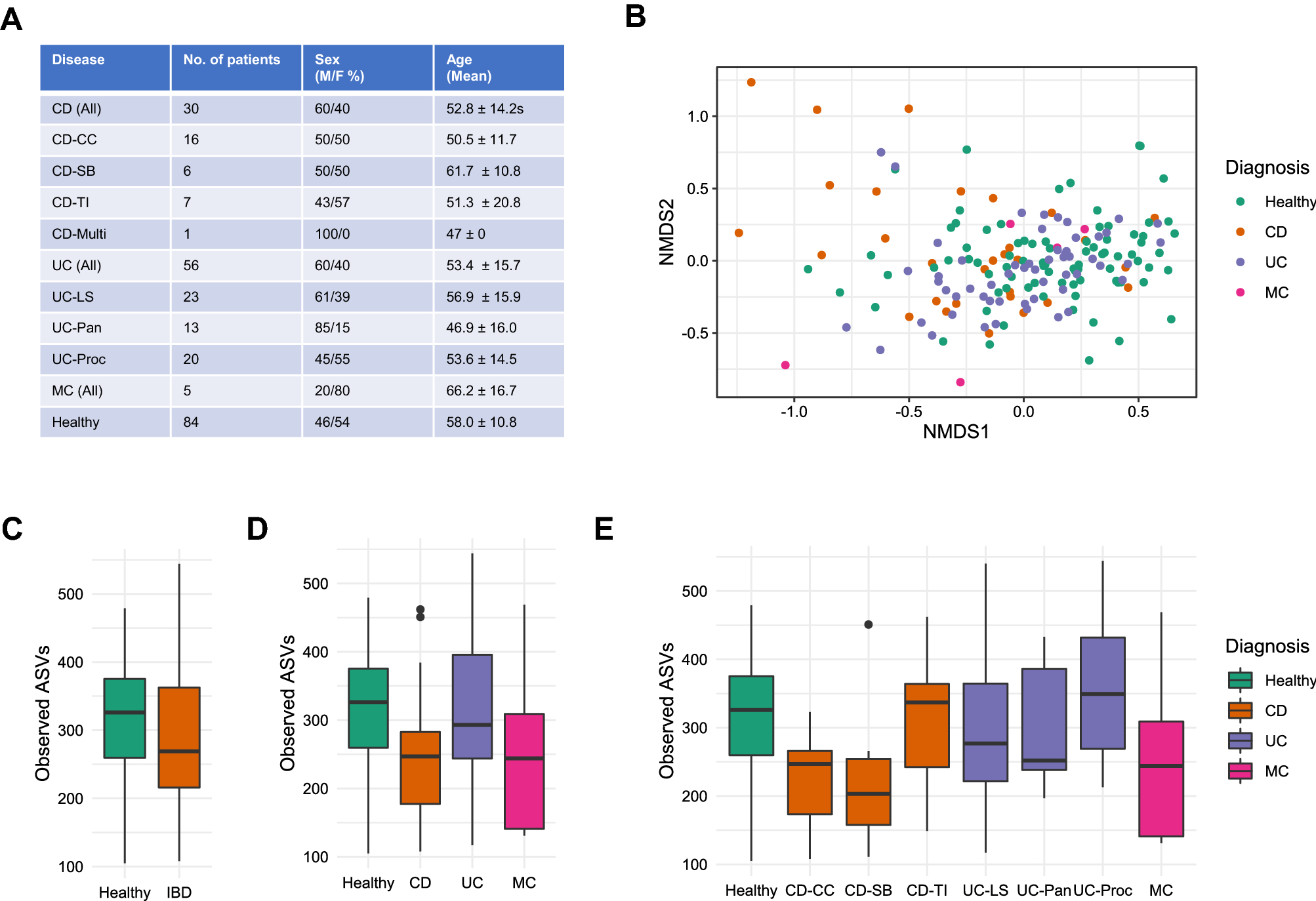

(A) Overview of FAMISHED Patient cohort. (B) NMDS ordination plot based on the Bray Curtis dissimilarity between Healthy Controls and three IBD conditions, CD, MC, UC. (C) The Observed ASV diversity of Healthy Controls and patients classified as having IBD. (D) The Observed ASV diversity of Healthy Controls and patients classified as having CD, UC, and MC. (E) The Observed ASV diversity of Healthy Controls and patients classified as having CD, UC, and MC when accounting for disease location in CD and UC patients.
