Figure 5 | Scientific Reports

Figure 5

From: Porphyromonas spp., Fusobacterium spp., and Bacteroides spp. dominate microbiota in the course of macropod progressive periodontal disease

Figure 5

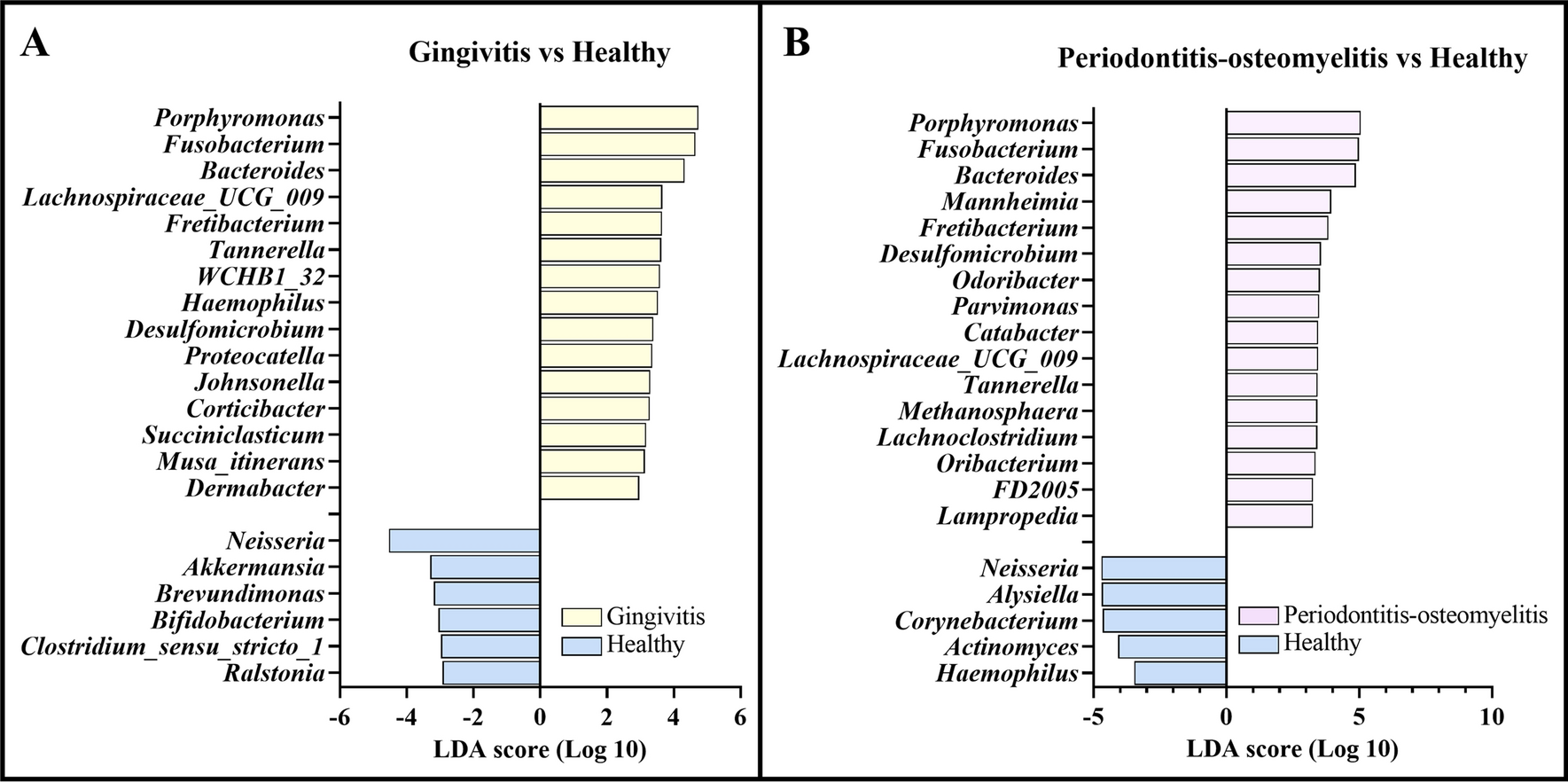

Biomarker discovery in macropod progressive periodontal disease using LEfSe test. (A) The main genera that differentiate gingivitis from healthy samples. (B) The main genera that differentiate periodontitis-osteomyelitis from healthy samples. LEfSe test with alpha value = 0.05 and threshold of absolute logarithmic linear discriminant analysis (LDA) score > 2. Higher absolute values of the LDA score represent higher enrichment and discriminative performance. Compared to healthy, Porphyromonas, Fusobacterium are overabundant in gingivitis and periodontitis-osteomyelitis samples. In contrast, Neisseria is underabundant in gingivitis and periodontitis-osteomyelitis samples.
