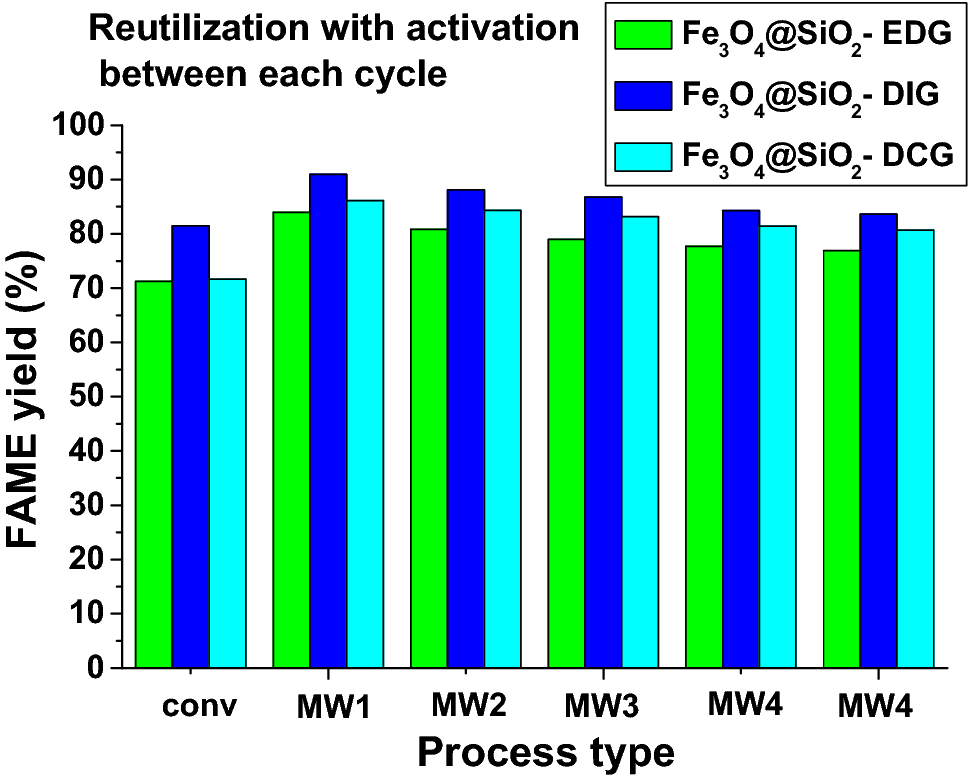

Figure 7

FAME yield for the recycling experiments for the magnetic catalysts with an activation stage between each cycle (activation before each reaction; temperature 80 ºC; reaction time 180 min; molar ratio oil/MeOH 1/6; 3.5% weight ratio catalyst vs. oil; 780 rpm).
