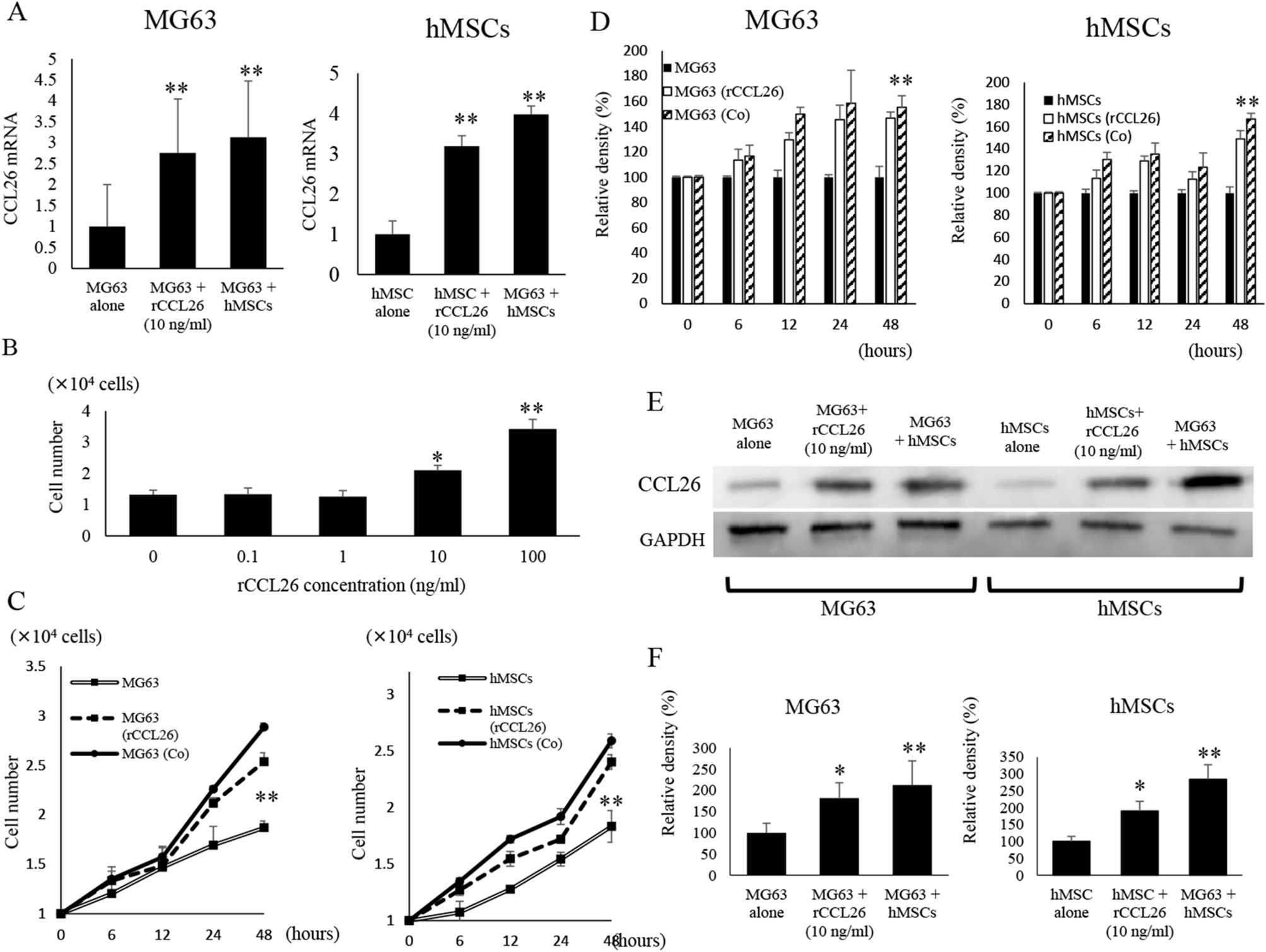

Figure 2
From: Analysis of the signal cross talk via CCL26 in the tumor microenvironment in osteosarcoma
Changes in CCL26 expression and cell growth in MG63 and hMSCs induced by the co-culture condition and rCCL26 administration. (A) Changes in CCL26 mRNA expression in MG63 and hMSCs were assessed by qRT-PCR. The co-culture and rCCL26 addition significantly increased the expression of mRNA of CCL26. (B) rCCL26 was administered to mono-cultured MG63. There was a significant increase in cell growth with rCCL26 at 10 ng/ml. (*) p < 0.05, (**) p < 0.01. (C) Changes in cell proliferation induced by Co-cultured condition and recombinant CCL26 administration in MG63 and hMSCs. (D) Changes in the degree of cell proliferation in the untreated, co-culture, and recombinant groups were analyzed by performing cell proliferation assay via BrdU incorporation. (E) Changes inCCL26 protein expression of intra-cellular hMSCs and MG63 were assessed by western blot analysis. The co-culture and addition of rCCL26 increased the expression ofCCL26 protein in MG63 and hMSCs. (F) The quantification of western blot analysis. Data represents represent the mean ± SD of three independent experiments. p < 0.05 was considered to indicate significance: (*) p < 0.05, (**) p < 0.01.
