Figure 13
From: Flexural band gaps and vibration control of a periodic railway track

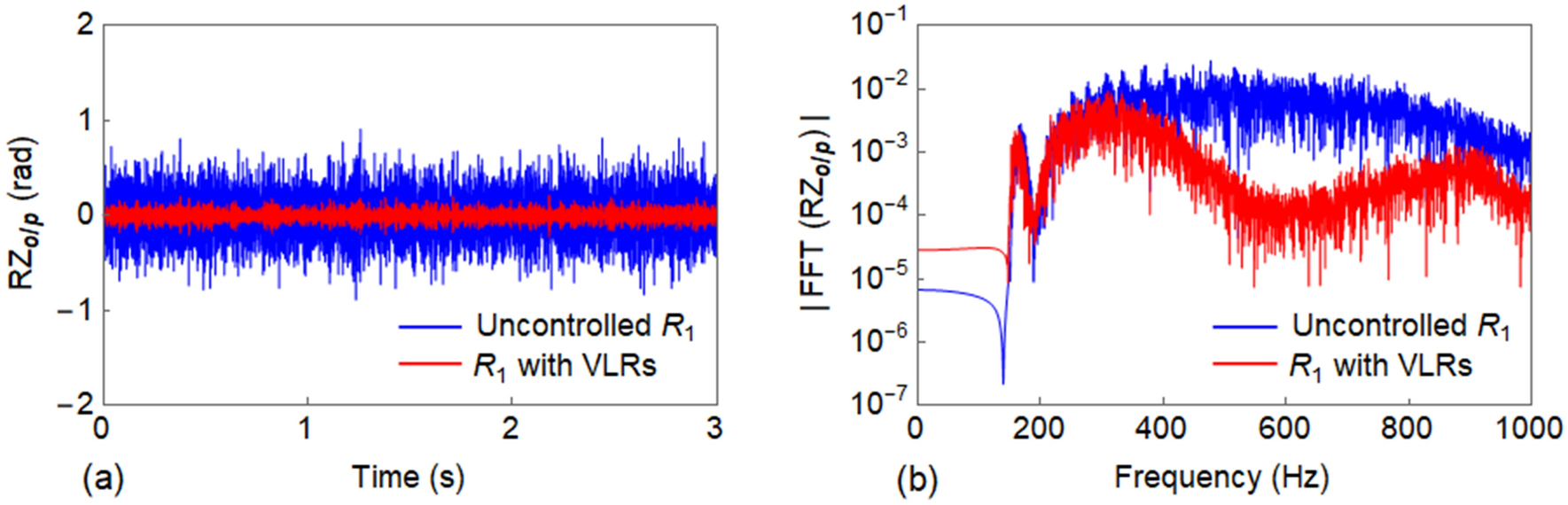

Comparison between the response of uncontrolled \({R}_{1}\) against \({R}_{1}\) with VLRs in vertical direction: (a) output response (\({RZ}_{o/p}\)); and (b) FFT (\({RZ}_{o/p}\)).
