Figure 12
From: Tunable X-ray dark-field imaging for sub-resolution feature size quantification in porous media

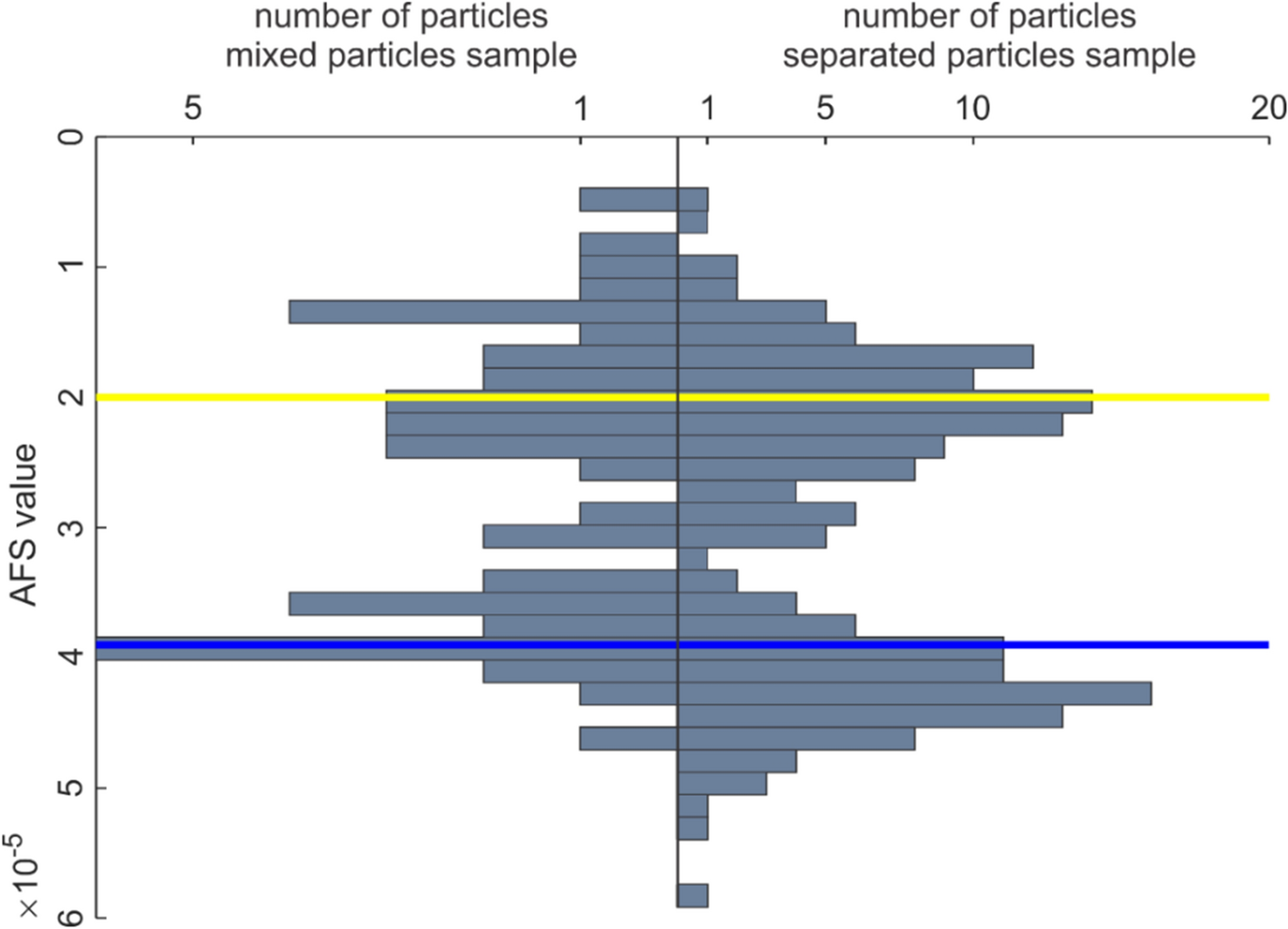

Histogram of particle AFS values for the sample with mixed particles (left) and the sample with separated particles (right). The yellow and blue lines represent the AFS value for the disk samples with 150 nm and 50 nm pores, respectively.
