Figure 1 | Scientific Reports

Figure 1

From: Understanding adsorption geometry of organometallic molecules on graphite

Figure 1

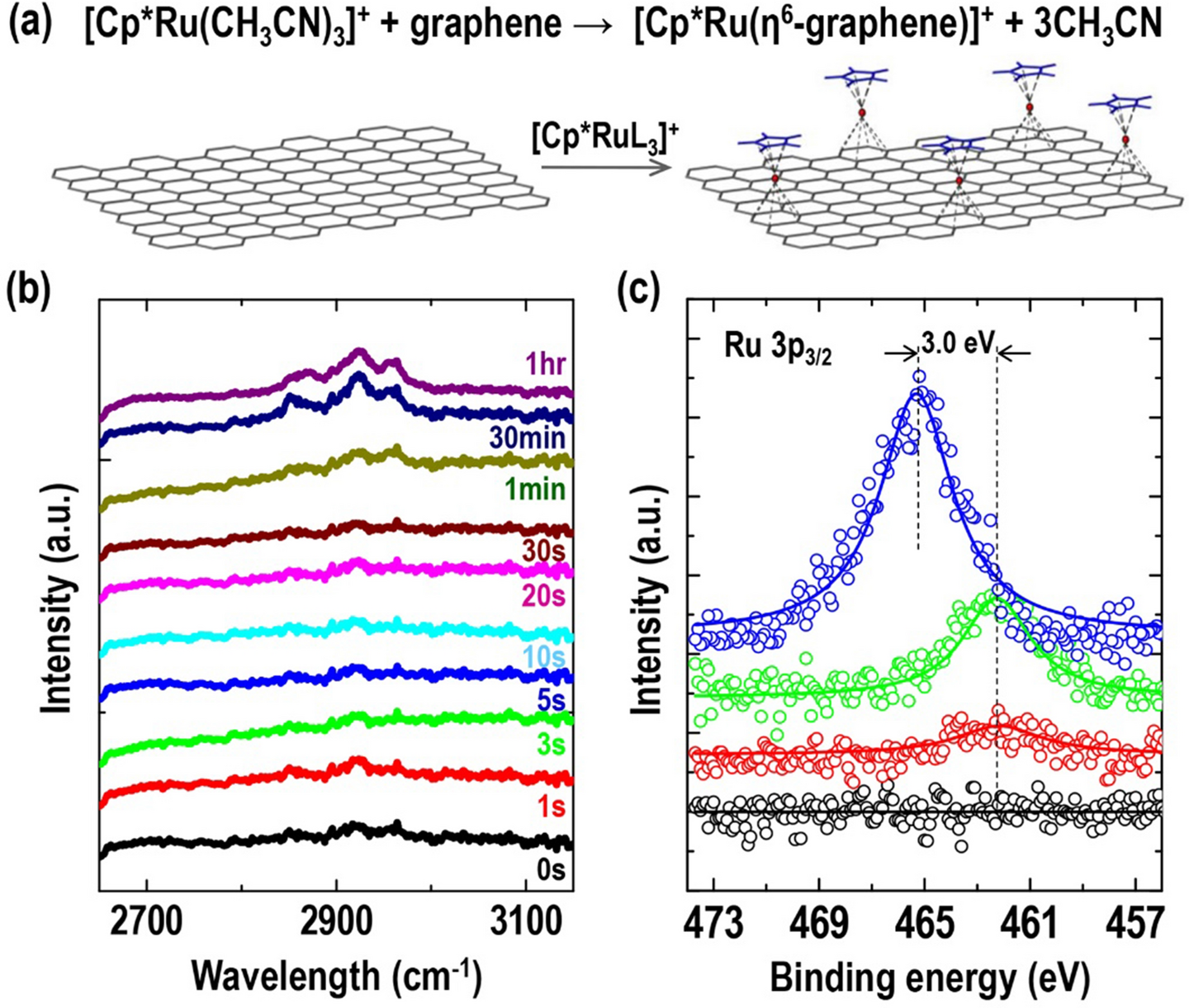

(a) Schematic illustration of chemical reaction between [Cp*Ru(CH3CN)3]+ and graphene surface. (b) FT-IR spectra of graphite as a function of reaction time in 1.25 mM Cp*RuL3PF6 solution. (c) XPS spectra of Ru 3p3/2 signal regions for pristine graphite (black), Cp*Ru+-graphites reacted with 1.25 × 10−7 M (red) and 1.25 mM (green) solutions, and dried 1.25 × 10−7 M Cp*RuL3PF6 on glass (blue).
