Figure 10
From: ZrN-ZrOxNy vs ZrO2-ZrOxNy coatings deposited via unbalanced DC magnetron sputtering

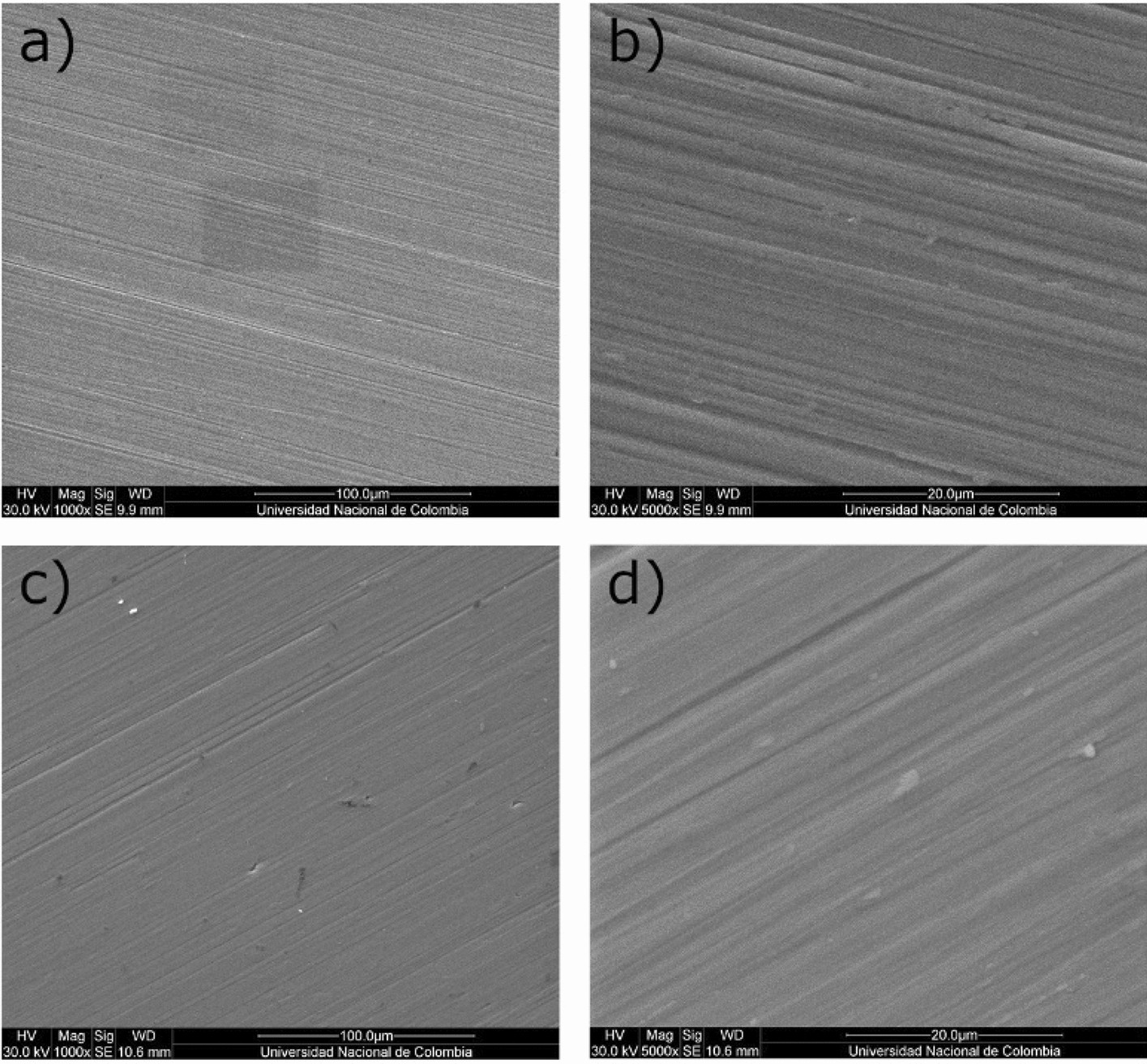

SEM micrograph showing the morphology of the ZrO2-ZrOxNy-316L coatings (a, b) before corrosion; (c, d) after corrosion in 3.5 wt. % NaCl solution.
