Figure 13
From: ZrN-ZrOxNy vs ZrO2-ZrOxNy coatings deposited via unbalanced DC magnetron sputtering

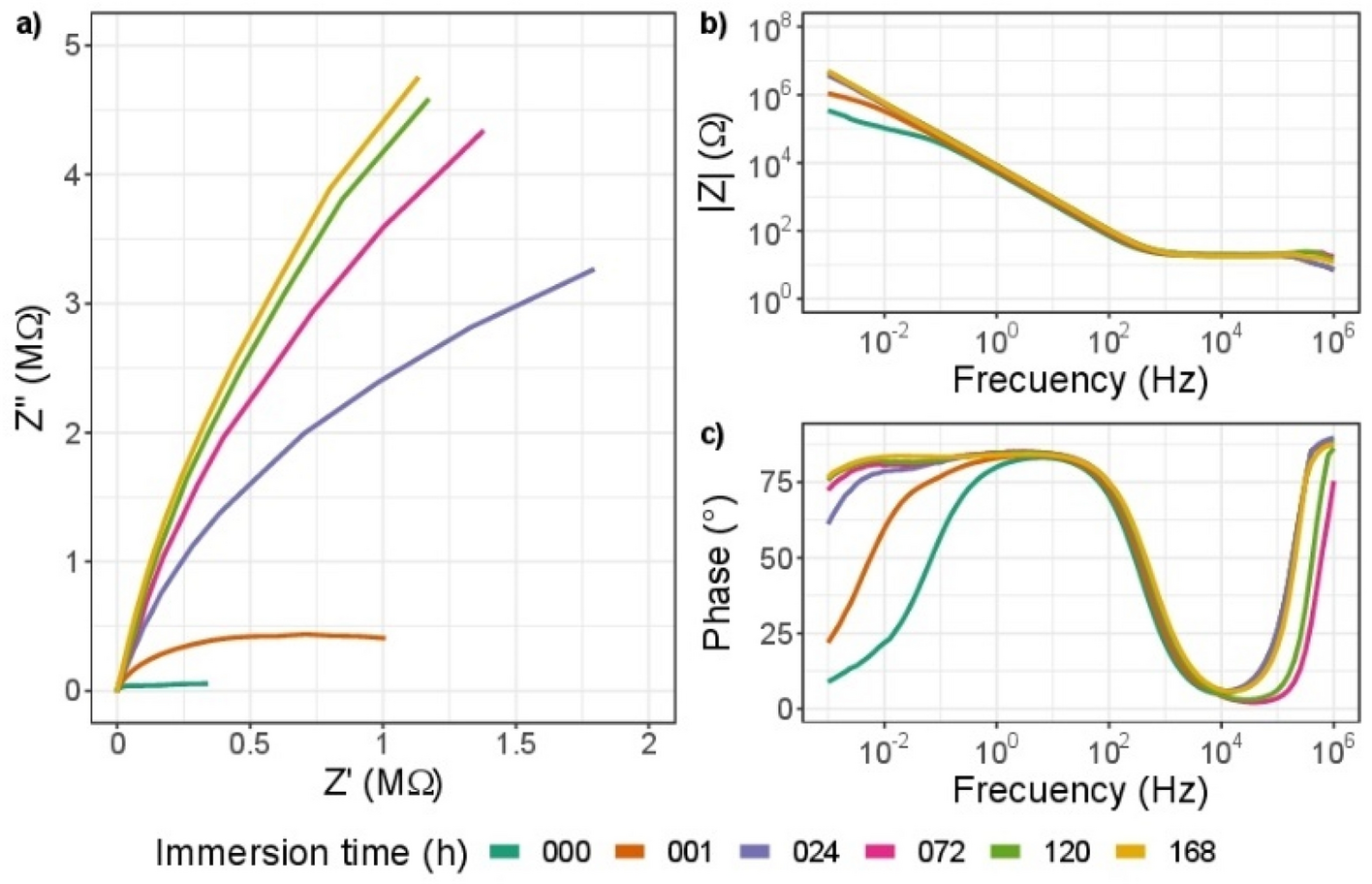

EIS diagram for impedance modulus obtained after different immersion times in 3.5% wt NaCl solution for stainless steel 316L (a) Nyquist impedance (b) Bode impedance and (c) Bode phase angle plots.
