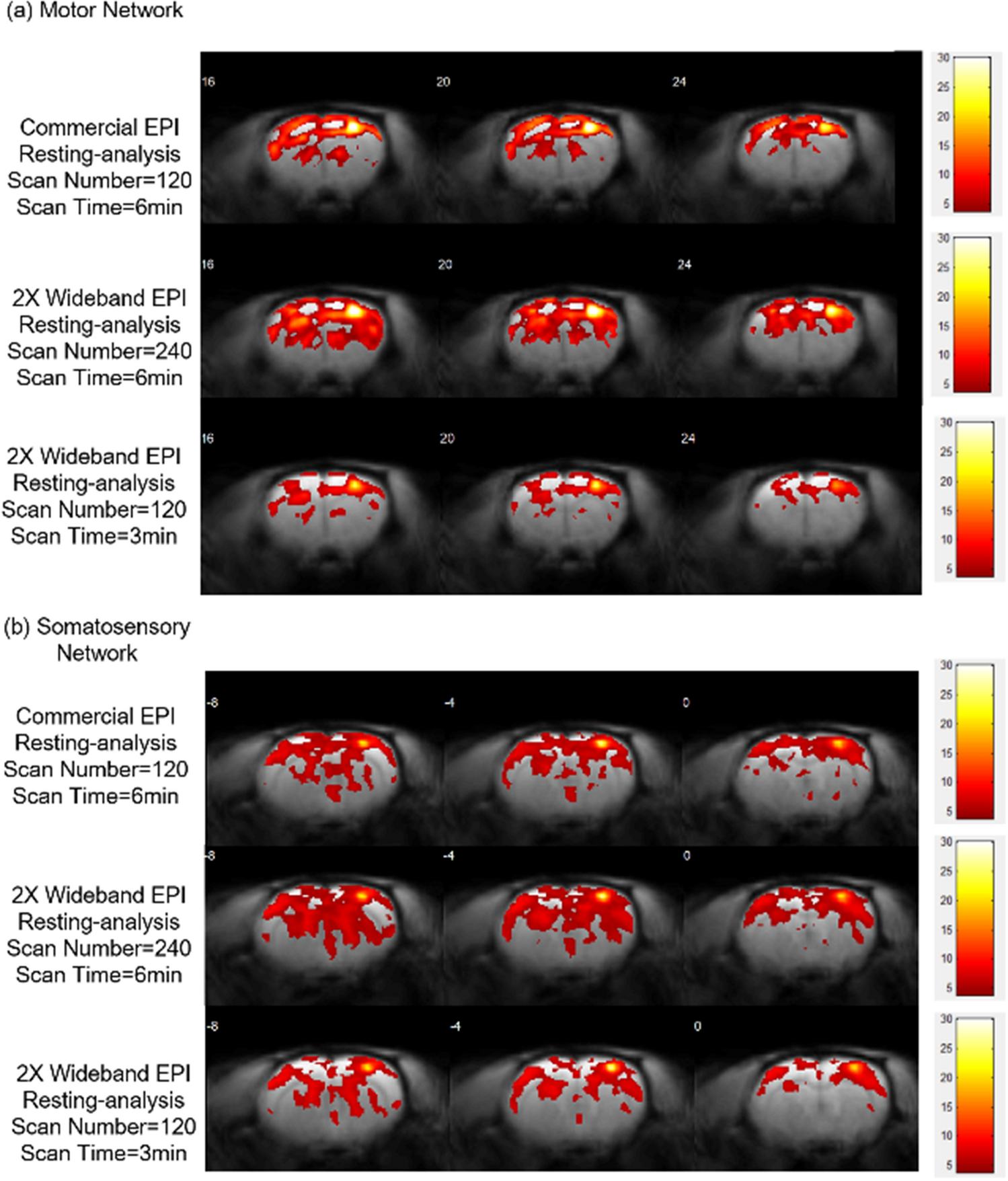

Figure 14
Resting-state functional connectivity. Resting-state functional connectivity with bandpass filtered at 0.01 and 1 Hz. Group resting-state functional connectivity maps (p < 0.005, N = 6) using seed regions in the (a) right motor network, (b) right somatosensory network. The 2X Wideband EPI (Scan Number = 240) shows increased (1.38 times as conventional scan) regional connectivity, but 2X Wideband EPI (Scan Number = 120) reveals less (0.78 times as conventional scan) connections in the right motor network. In the right somatosensory network, 2X Wideband EPI (Scan Number = 240) presents 1.34 times relative regions but 0.82 times regions are observed in 2X Wideband EPI (Scan Number = 120).
