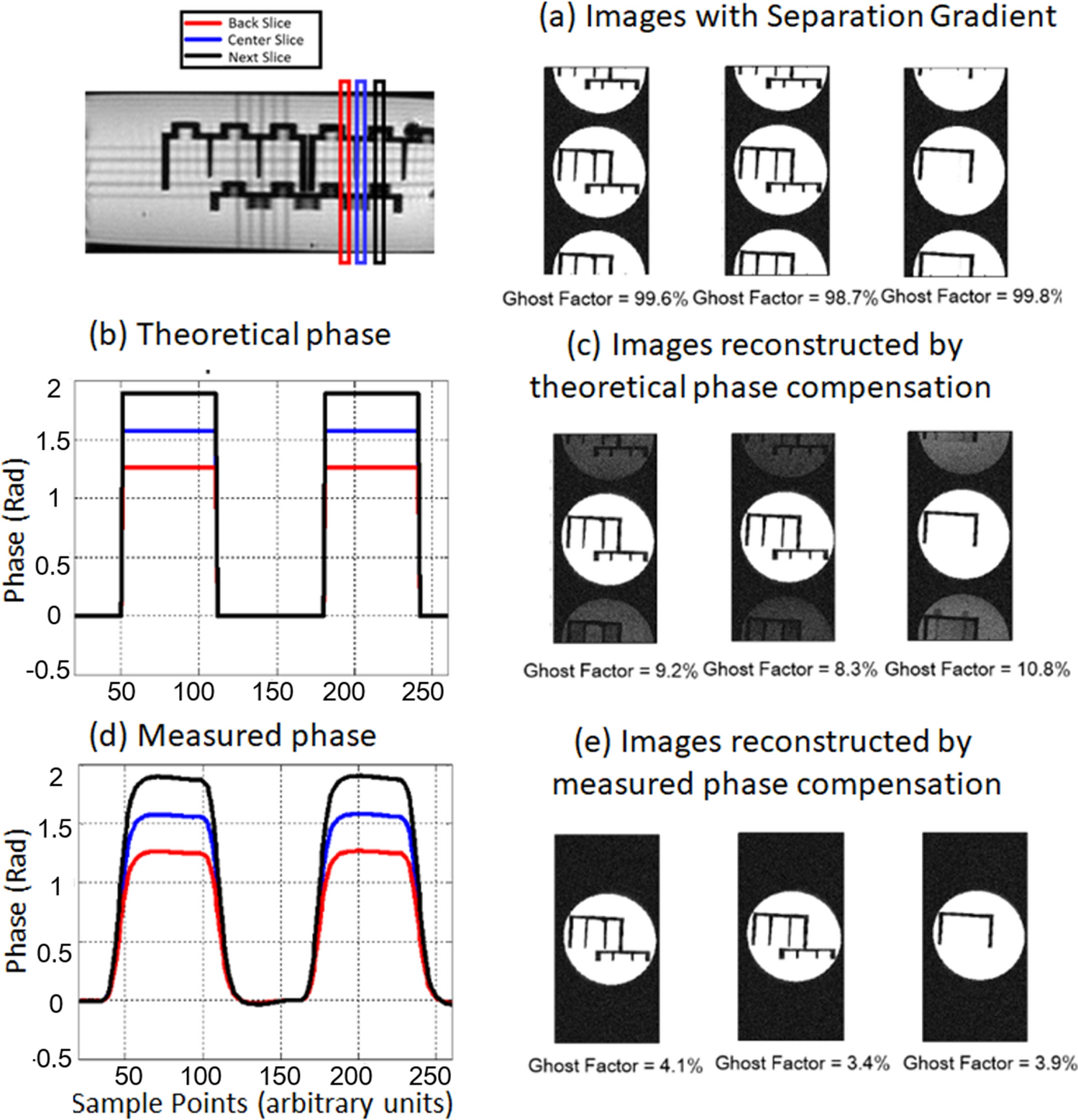

Figure 3

Slice Dependent Phase Alignment. Separation gradients induce phase shift in k-space which leads to N/2 artifacts on the images shown in (a). The artifacts were partially corrected by theoretical phase as shown in (b) and (c). By applying the measured phase, precise offset compensation for Wideband images was ensured as shown in (d) and (e).
