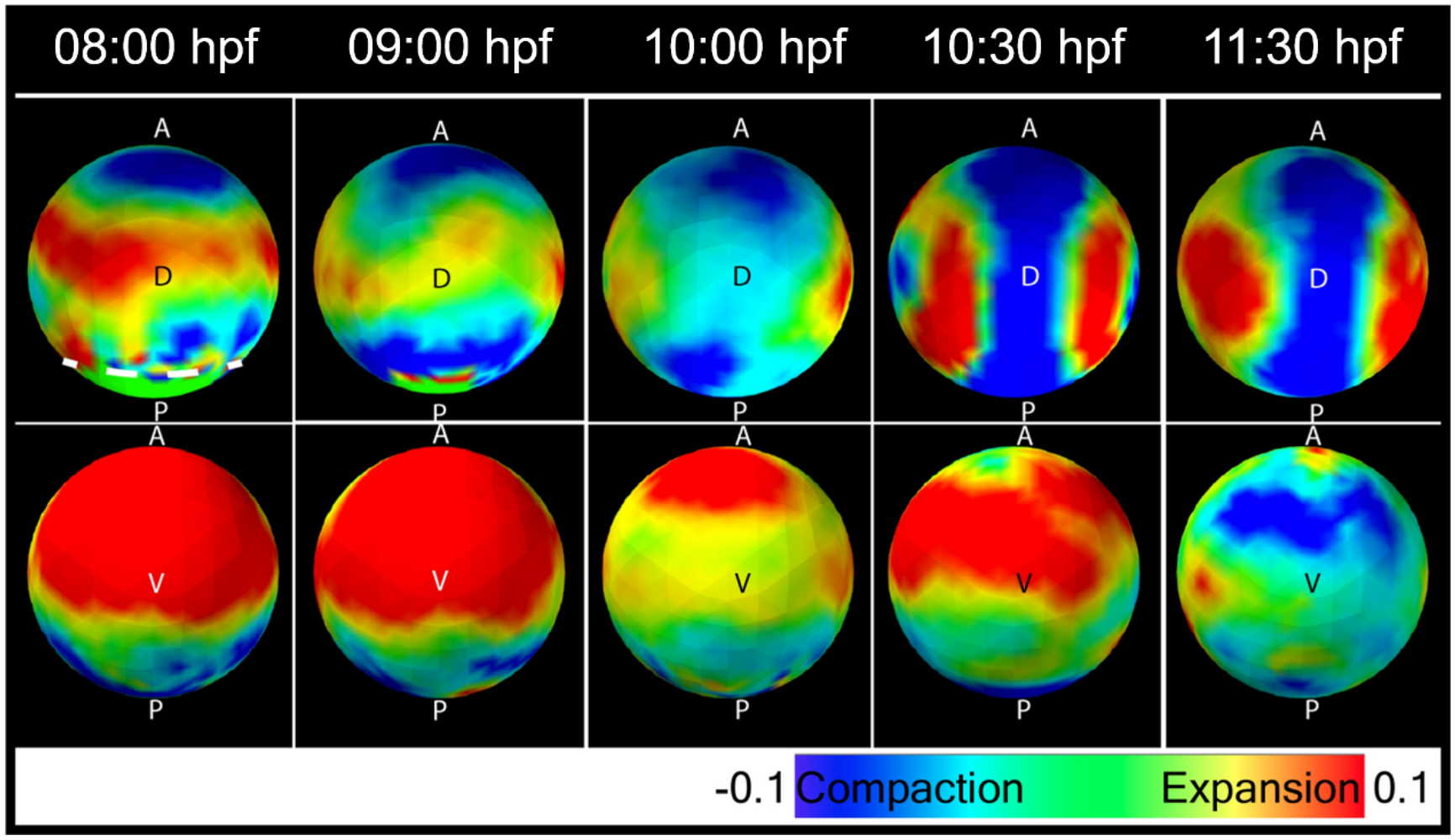

Figure 5

Divergence of velocity field (strain trace) at 8 (80% epiboly), 9 (90% epiboly), 10 (bud, 100% epiboly), 10.5 hpf (1-somite) and at 11:30 hpf. The white dotted line in the posterior side before 100% epiboly, indicates the margin of dorsal closure.
