Figure 1

From: An all-sputtered photovoltaic ultraviolet photodetector based on co-doped CuCrO2 and Al-doped ZnO heterojunction

Figure 1

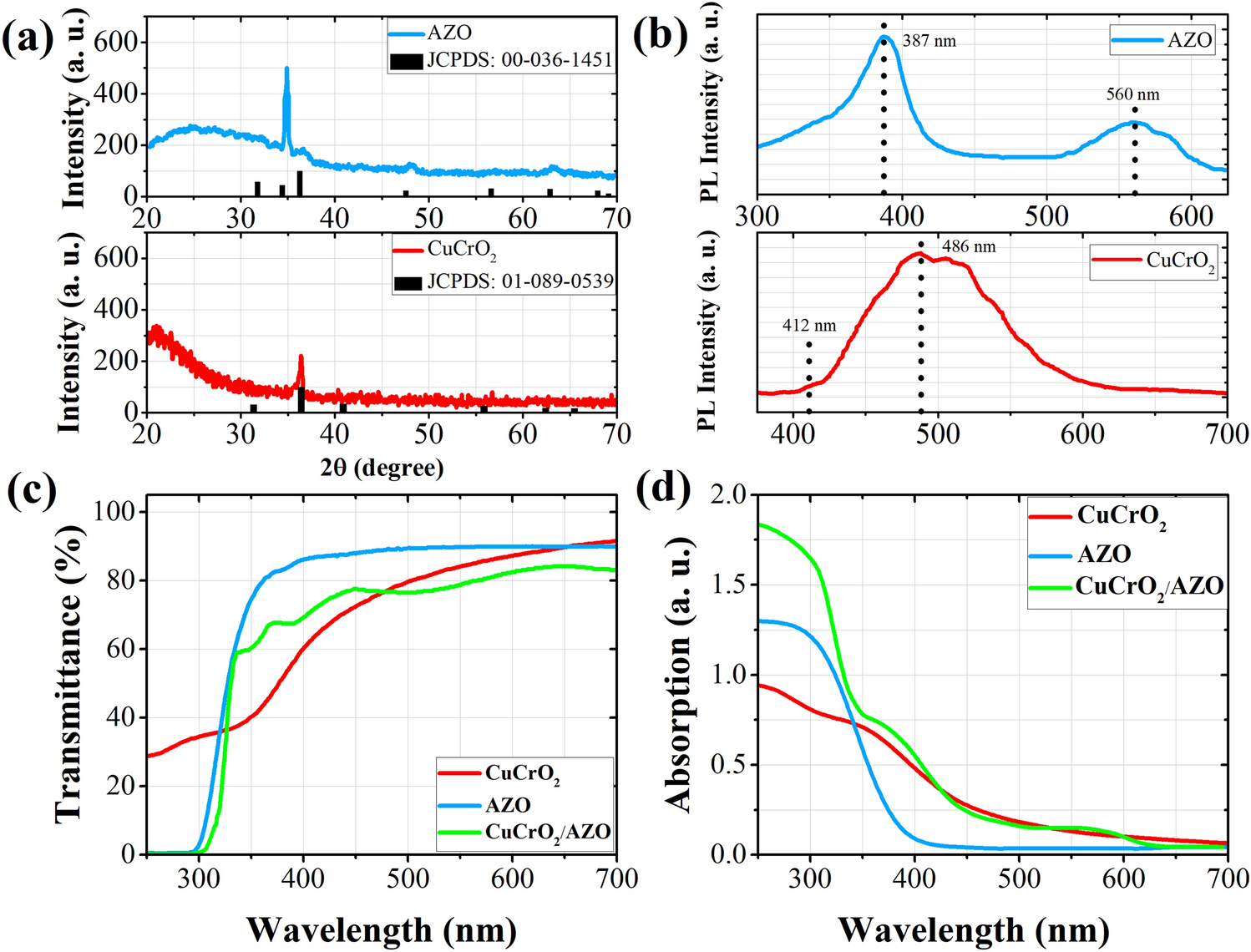

(a) Grazing XRD patterns of the prepared co-doped CuCrO2 thin film after the post-deposition annealing and AZO thin film without post-deposition annealing, deposited on quartz substrate along with the corresponding JCPD references. (b) PL spectra of the AZO and co-doped CuCrO2 thin films. (c) Transmittance and (d) absorption spectra of the prepared layers and the fabricated device acquired with UV–vis analysis.
