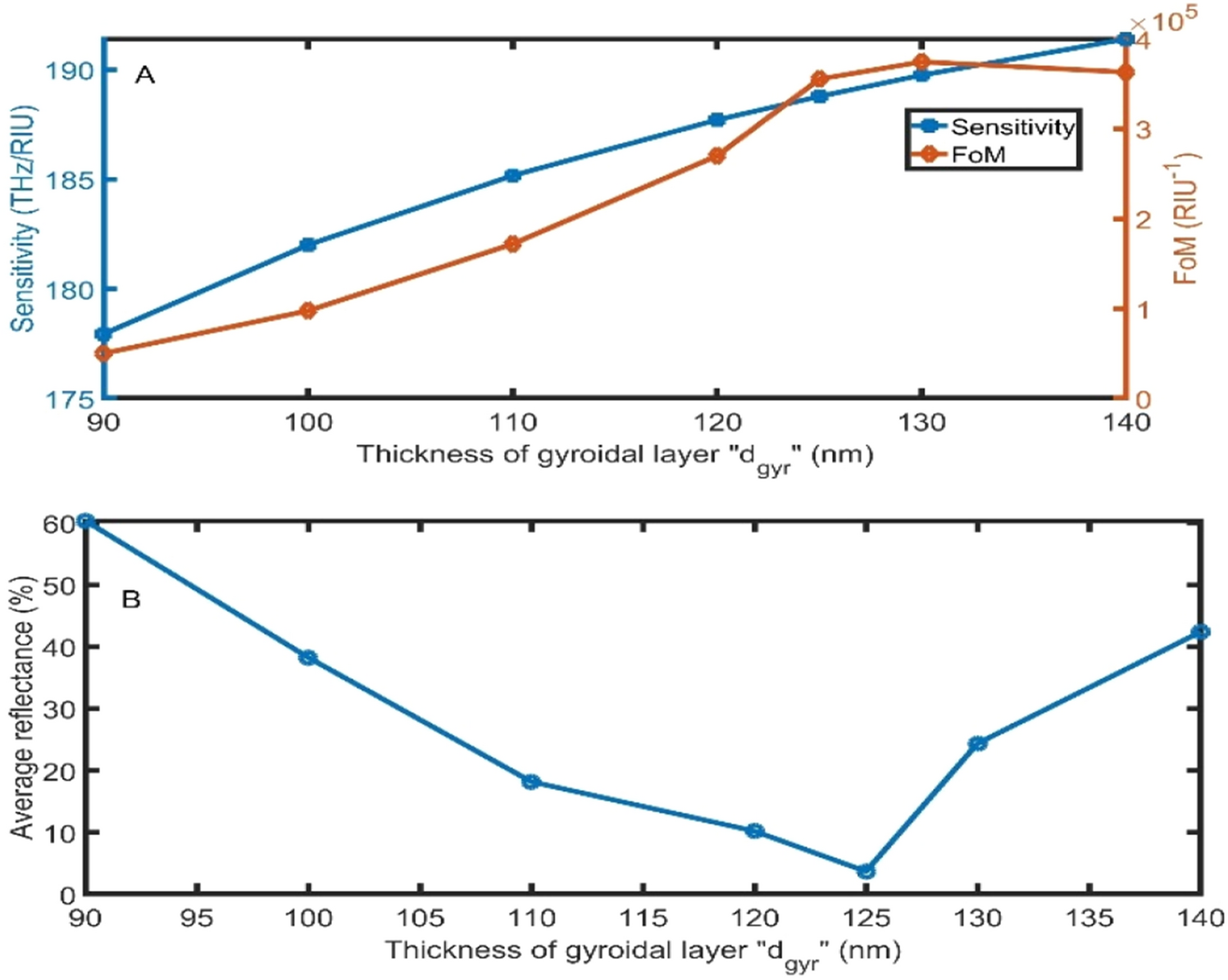

Figure 5
From: Gyroidal graphene/porous silicon array for exciting optical Tamm state as optical sensor
The (A) sensitivity and FoM, and (B) average reflectance of the proposed sensor as a function of the gyroidal graphene layer thickness by changing the sample refractive index from 1.00 to 1.01 at 80° and dsample = 16,000 nm.
