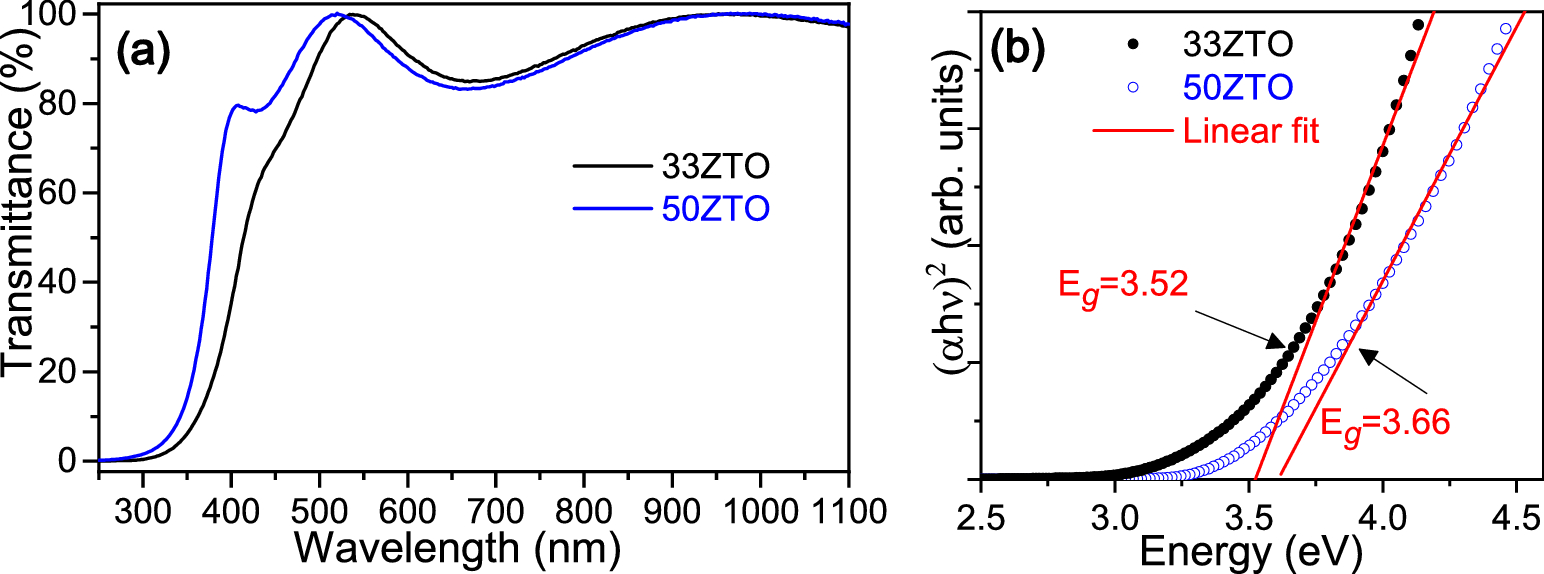

Figure 2
(a) UV–Vis transmission spectra and (b) calculation of the bandgap energy of the ZTO thinfilms on Corning glass substrate with an elemental composition identical to semiconductor channels of 33ZTO and 50ZTO TFTs.
