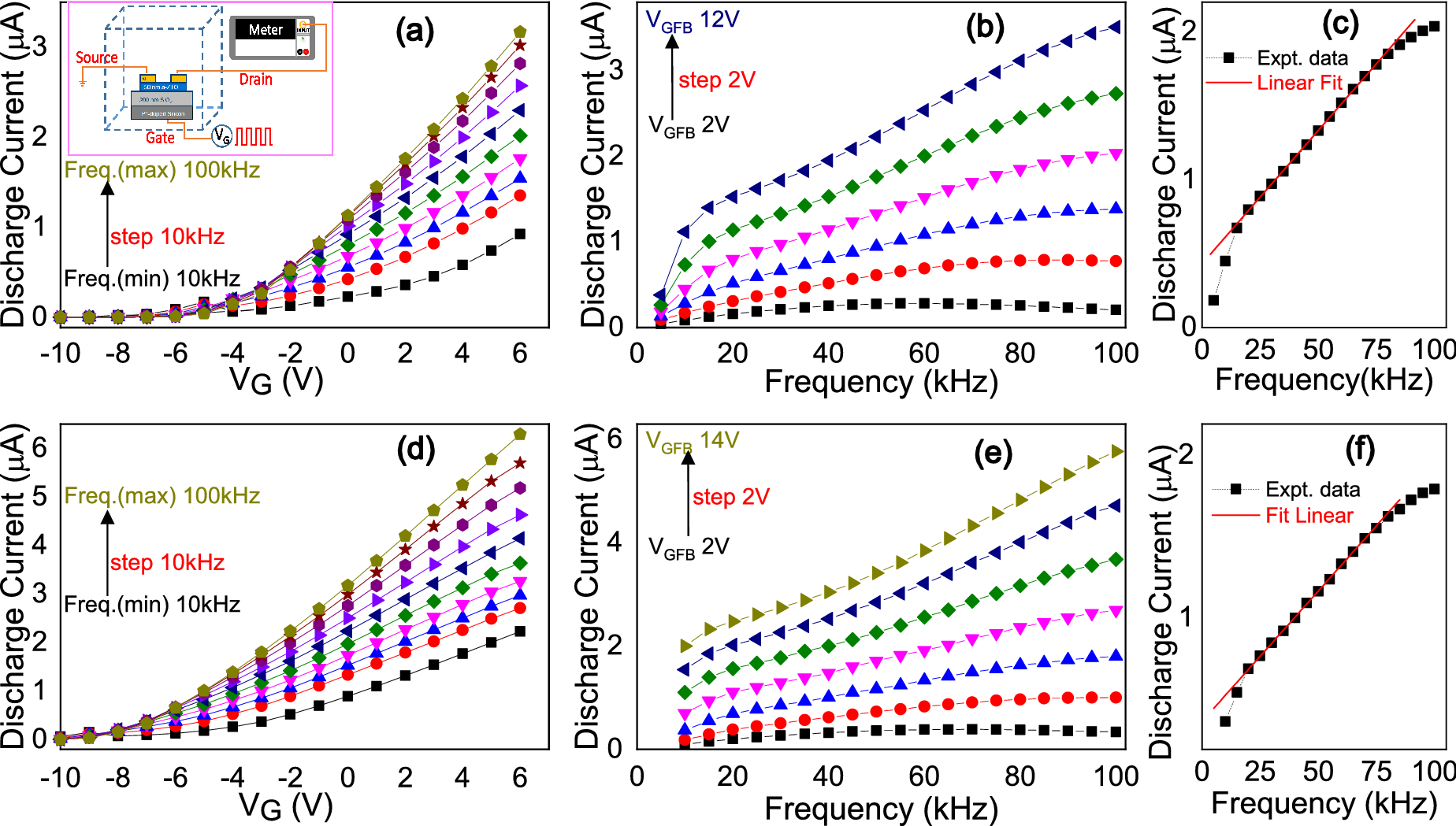

Figure 6
Measured discharge current data, as a function of pulse gate voltage pulse (VG) for different pulse frequency (a) and as a function of pulse gate voltage frequency for different VGFB (= VG − VFB) (b), for the sample 33ZTO TFT. The inset shows a schematic diagram of the overview of the discharge current analysis technique with electrical connections. In (c), the representative linear fitting to the discharge current-gate pulse voltage frequency experimental data. In (d–f) measured discharge current data of the same for another TFT, 50ZTO.
