Figure 3

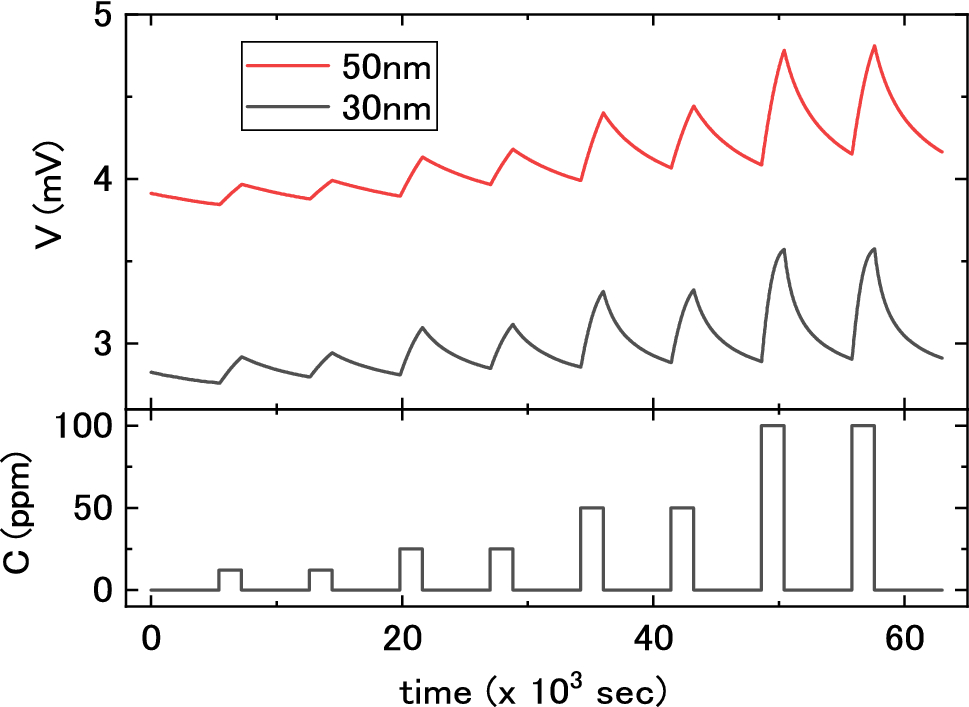

Responses of PdCuSi/MSS to hydrogen concentrations of 12, 25, 50, and 100 ppm. Their baselines are not corrected (no offset). Horizontal axis represents time, and vertical axes represent the signals of the MSS (V) and the concentration of hydrogen (C) regulated by the mass-flow controllers.
