Figure 10
From: Naphthyridine derived colorimetric and fluorescent turn off sensors for Ni2+ in aqueous media

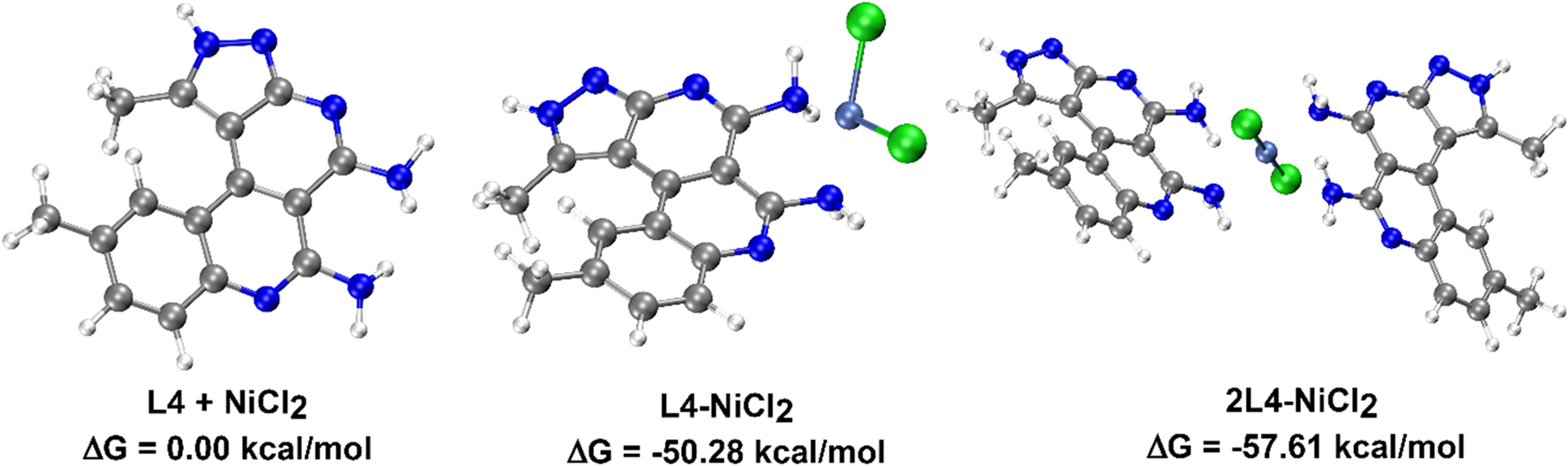

Scheme of optimized geometries (with M06L/def2-SVP method) for L4-NiCl2 complexes and 2L4-NiCl2 complexes with Ni2+ with their respective relative Gibb free energies.
