Figure 1
From: Effect of single tube sections on the structural safety of Chinese solar greenhouse skeletons

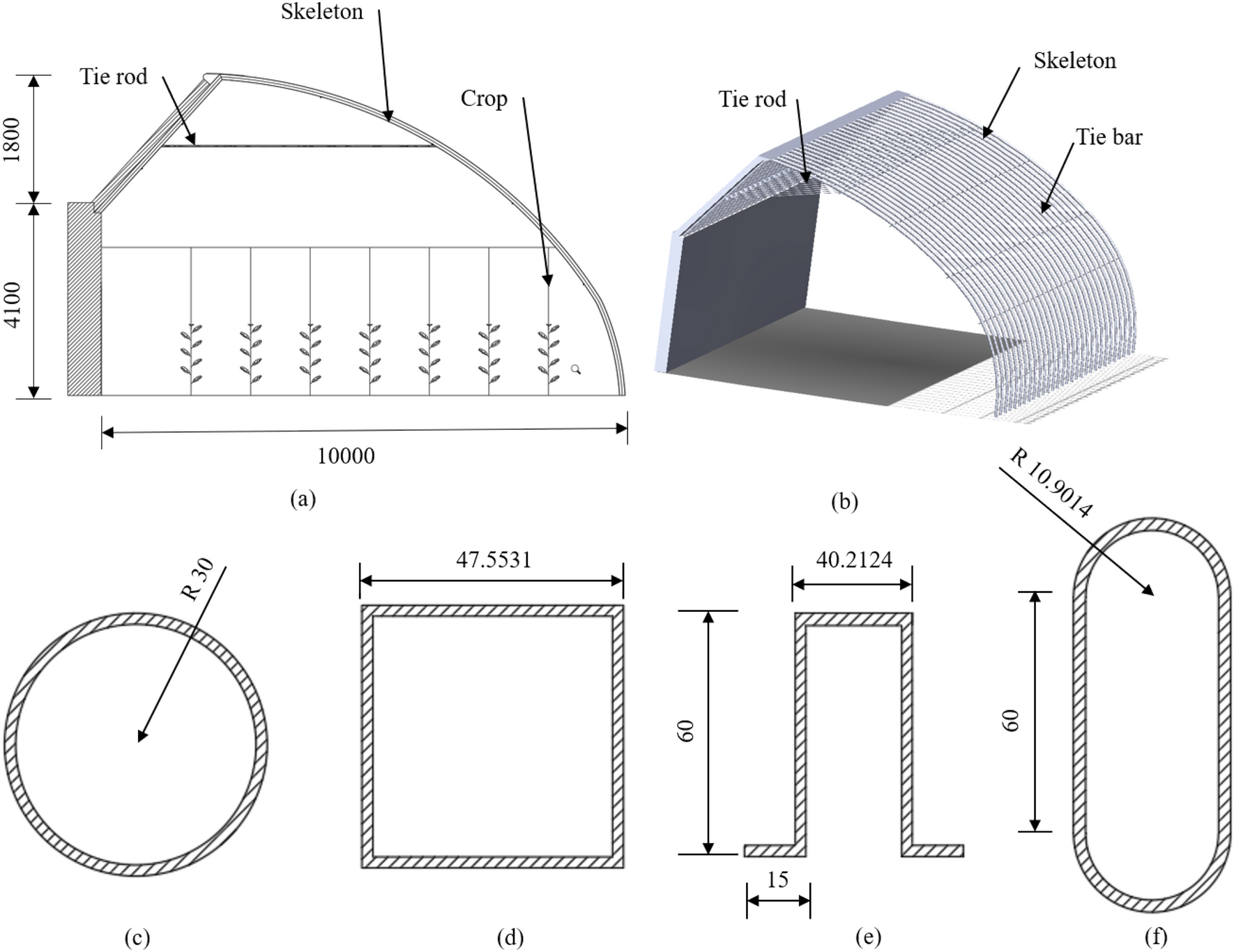

Explanation diagram of greenhouse skeleton structure (mm): (a) greenhouse sectional view; (b) greenhouse skeleton connection diagram; (c) round tube section size; (d) square tube section size; (e) Ω tube size; (f) elliptic tube section size.
