Figure 10
From: Effect of single tube sections on the structural safety of Chinese solar greenhouse skeletons

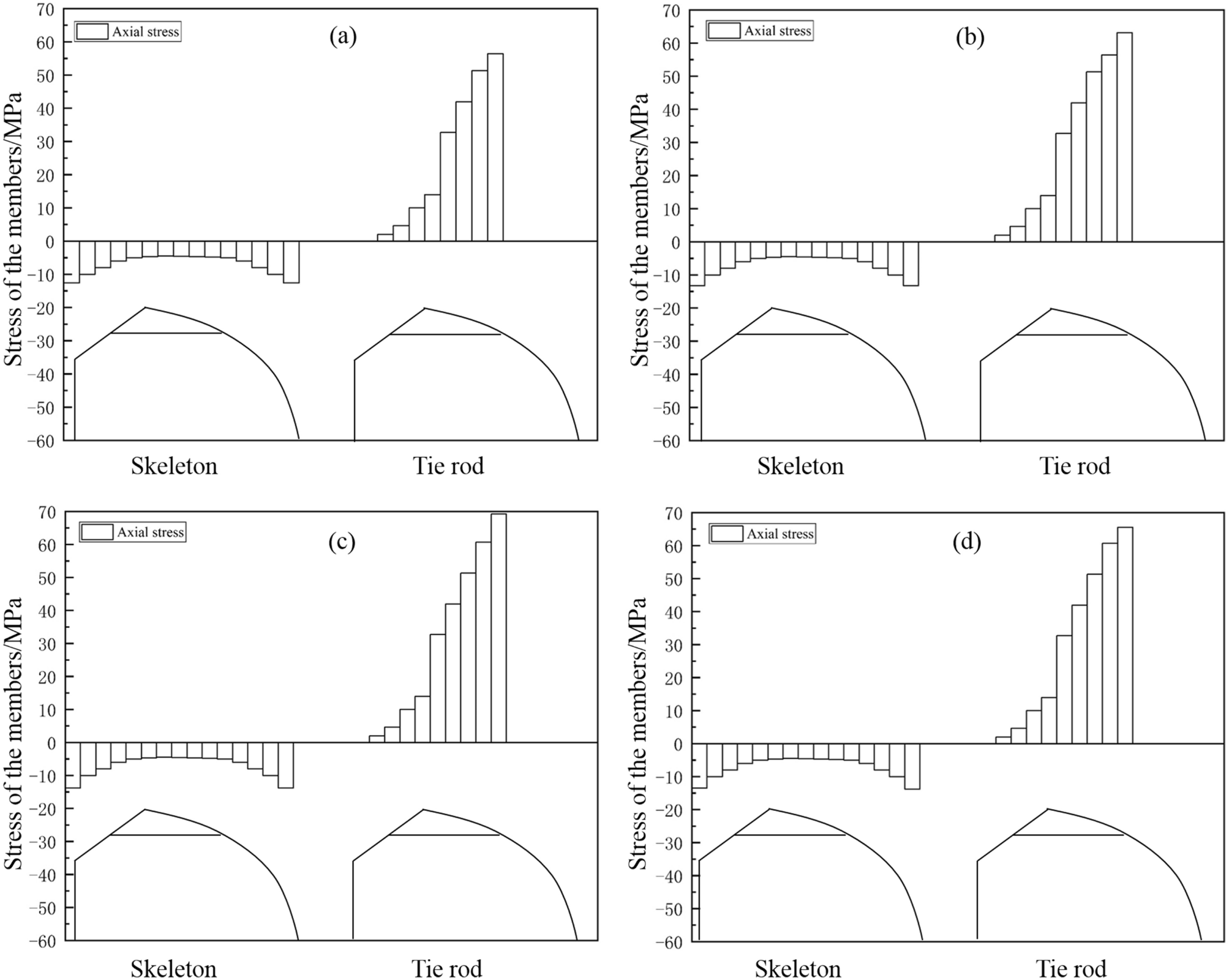

Normal stress diagram of greenhouse skeleton under non-uniform snow load condition: (a) round tube; (b) square tube; (c) Ω tube; (d) elliptic tube.
