Figure 4
From: An adaptive approach to machine learning for compact particle accelerators

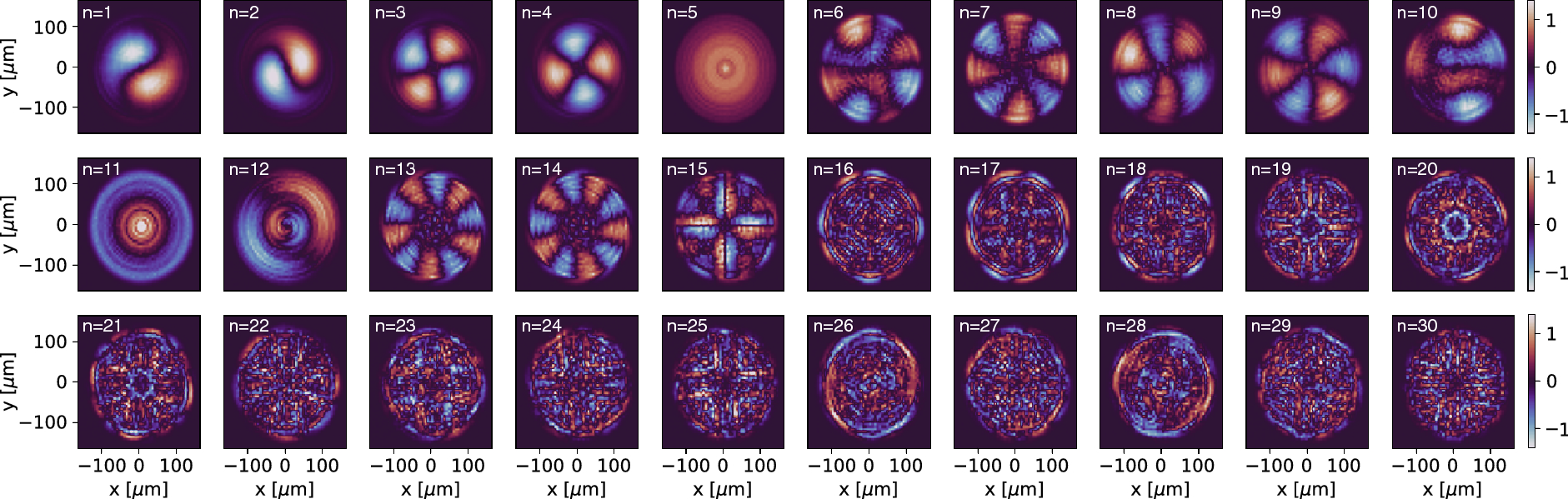

The first 30 principal components (normalized) of the input electron beam distribution are shown. The most dominant modes are \(n=1\) to \(n=15\), after which the components are seen to represent very fine details.
