Figure 7
From: An adaptive approach to machine learning for compact particle accelerators

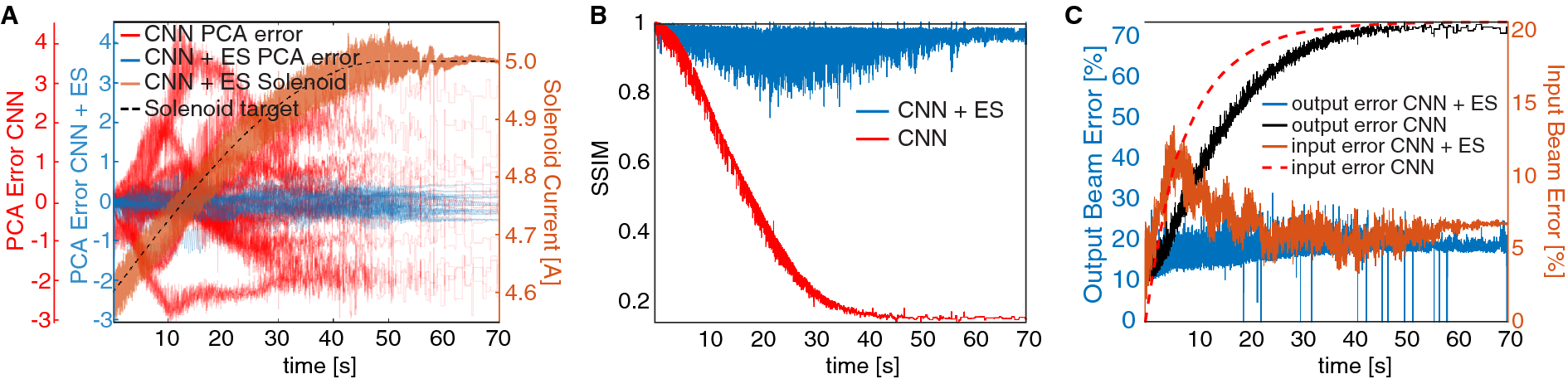

(A) PCA component tracking error shown with CNN alone and with CNN \(+\) ES, in the latter case the solenoid strength is also tracked. (B) CNN \(+\) ES tracks the output beam. (C) Output and input beam distribution errors continuously minimized.
