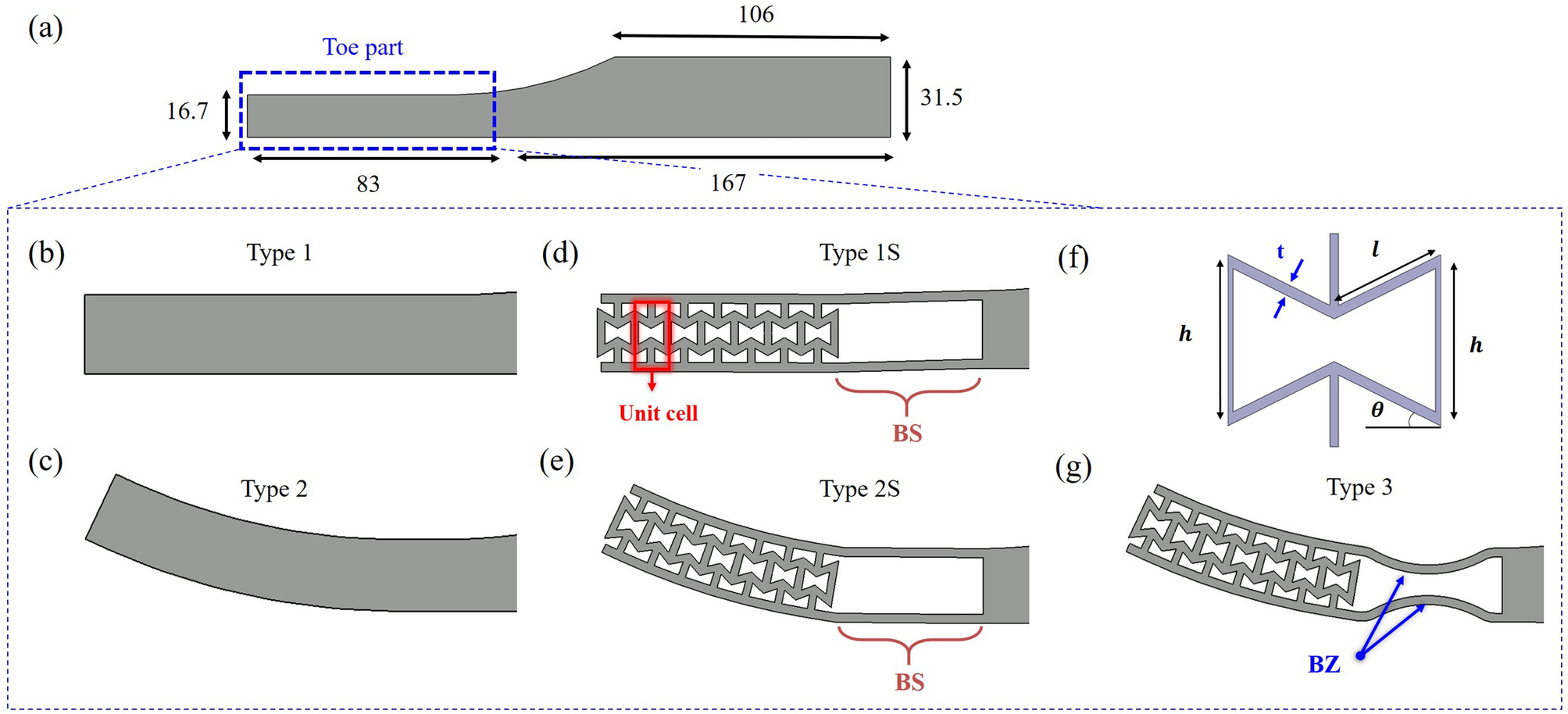

Figure 2

(a) Geometry and dimensions of prosthetic foot which was used in simulation. Various toe shape of prosthetic foot to implement toe joint to the prosthetic foot; (b,c) without structure and (d,e,g) with structure. (f) Geometry parameters of unit cell.
