Figure 3

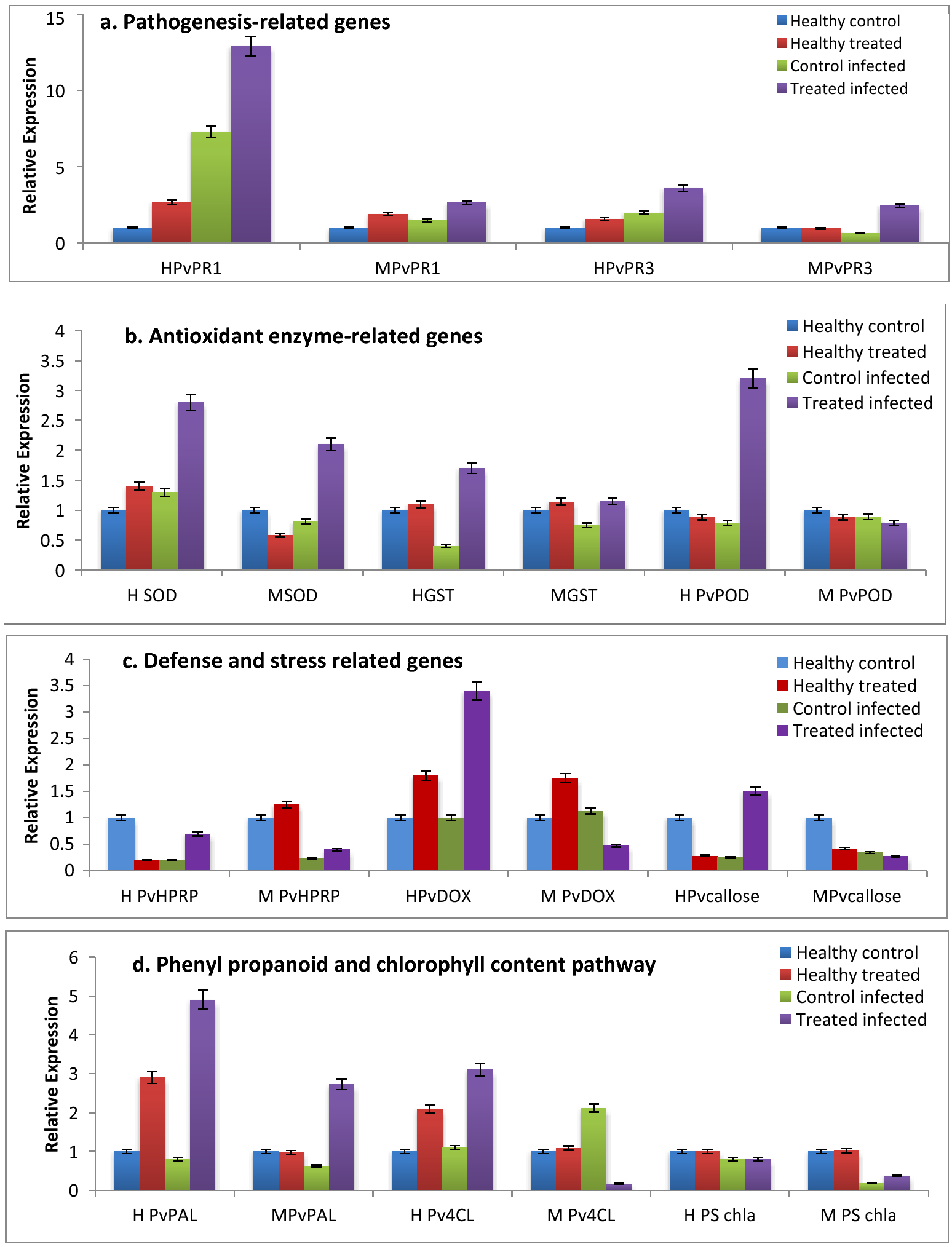

Differential expression of defense related genes in P. vulgaris AlHama (H) and Moraleda (M) cvs 2 days post infestation with L. trifolii. (a) Pathogenesis related genes (PvPR1 and PvPR3), (b) antioxidant enzyme-related genes (PVDOX , SOD and GST), (c) defense and stress related genes (PVOD, PvHPRP and Pvcallose) (d) phenyl propanoid pathway (PVPAL and PV4CL) and light-harvesting type-I (Lhcll-I ).
