From: Quantitative assessment of multiple fish species around artificial reefs combining environmental DNA metabarcoding and acoustic survey

Figure 3

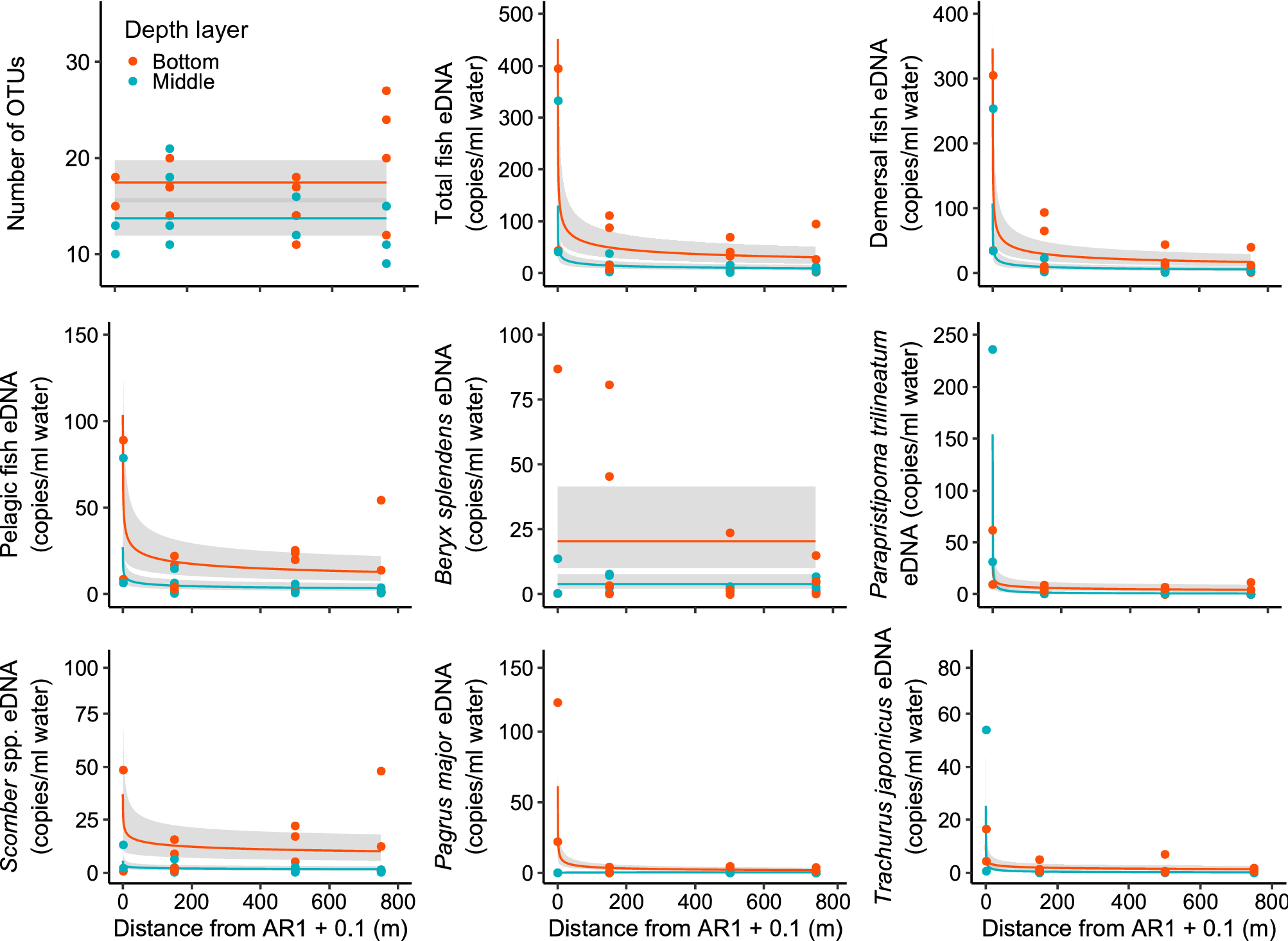

The relationships between distance from AR1 as well as number of OTUs and eDNA copies of total fish, demersal fish, pelagic fish, Beryx splendens, Parapristipoma trilineatum, Scomber spp., Pagrus major, and Trachurus japonicus. The red and turquoise blue lines indicate median values in the bottom and middle layers respectively, while each color circle indicates raw values in the respective layers. The gray shaded area represents a 95% confidence interval, as determined from the generalized linear model.
