Figure 3 | Scientific Reports

Figure 3

From: Uncovering the transcriptional response of popcorn (Zea mays L. var. everta) under long-term aluminum toxicity

Figure 3

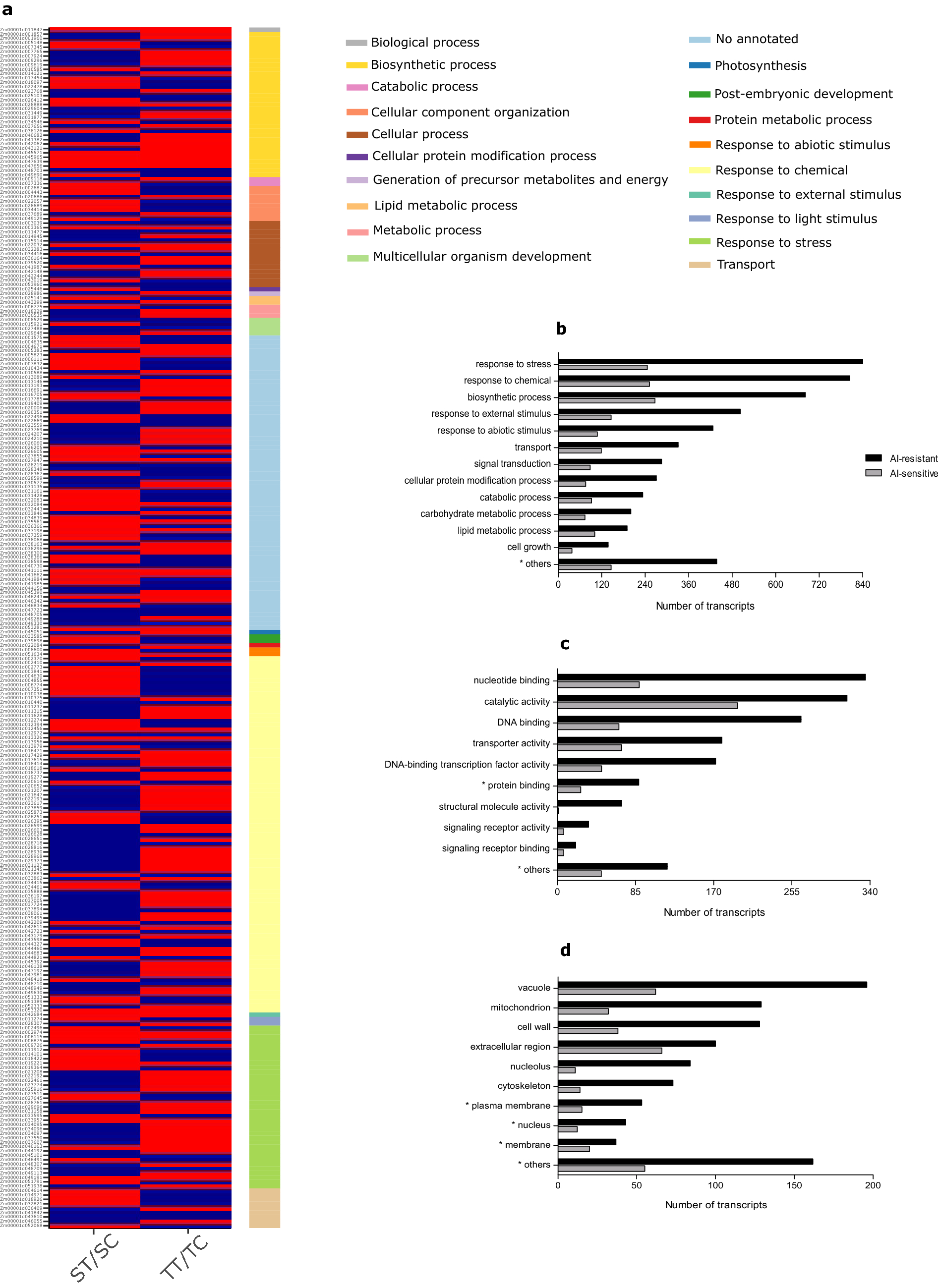

Gene Ontology (GO) enrichment of DEGs. (a) Heatmap of the differentially expressed genes shared in both inbred lines—ST/SC: contrast between Al-sensitive line under treatment/control conditions; TT/TC: contrast between Al-resistant line under treatment/control conditions. (b) Biological process. (c) Molecular function. (d) Cellular component. *The numbers of genes were divided by 10. Heatmap was generated in R version 3.6.2 (https://www.r-project.org/).
