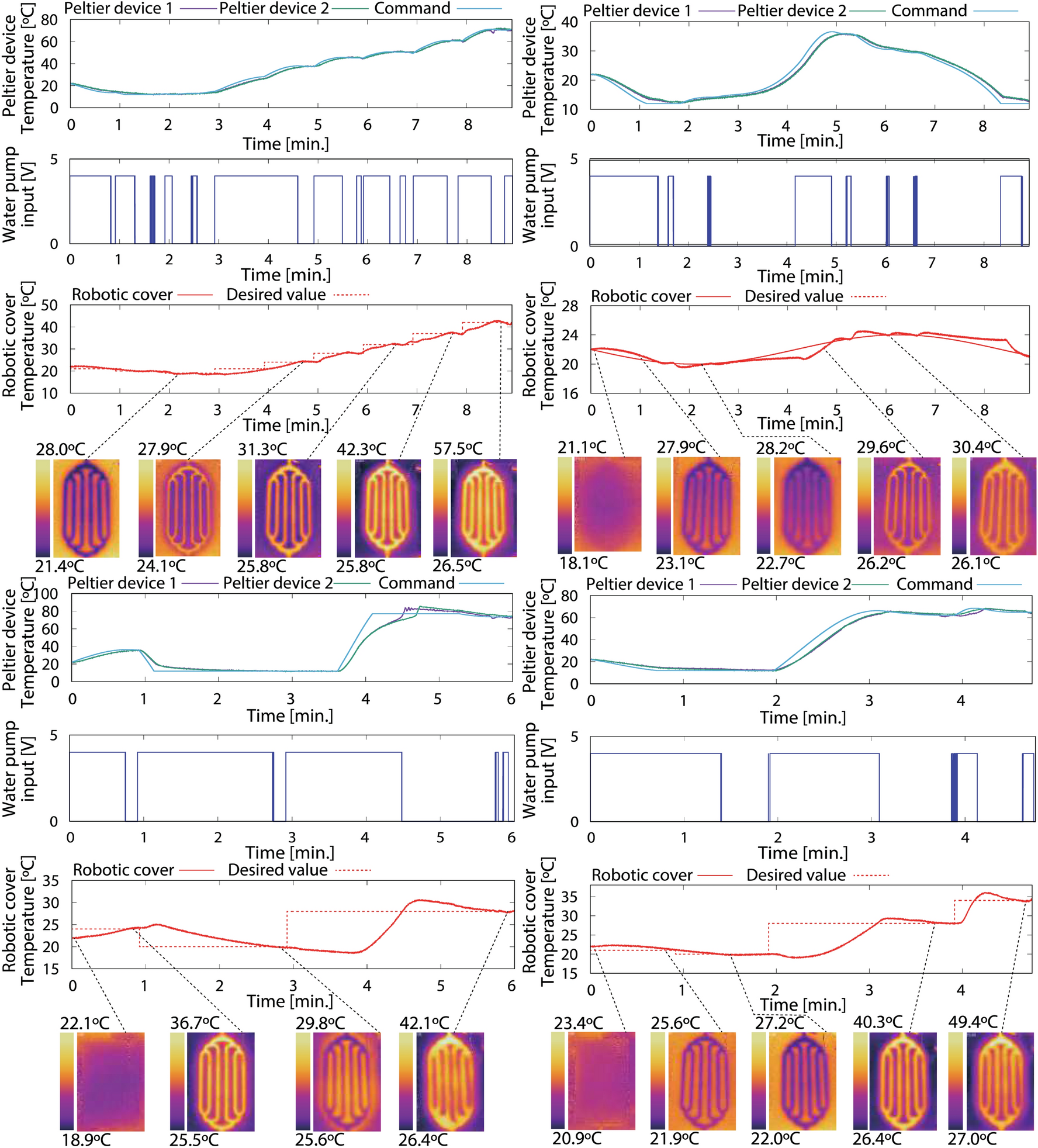

Figure 7
The cover temperature controlled with any desired temperature profiles. The cover temperature is regulated to the predefined temperature using the small tank mounted on the humanoid robot. Due to the system’s total time constant, the time to reach the command takes more than 1 min to heat the cooled water and to cool the heated water. This is not critical for human–robot interaction, considering prolonged physical interaction such as hugging and holding.
