Figure 8
From: Removal of oil spills by novel developed amphiphilic chitosan-g-citronellal schiff base polymer

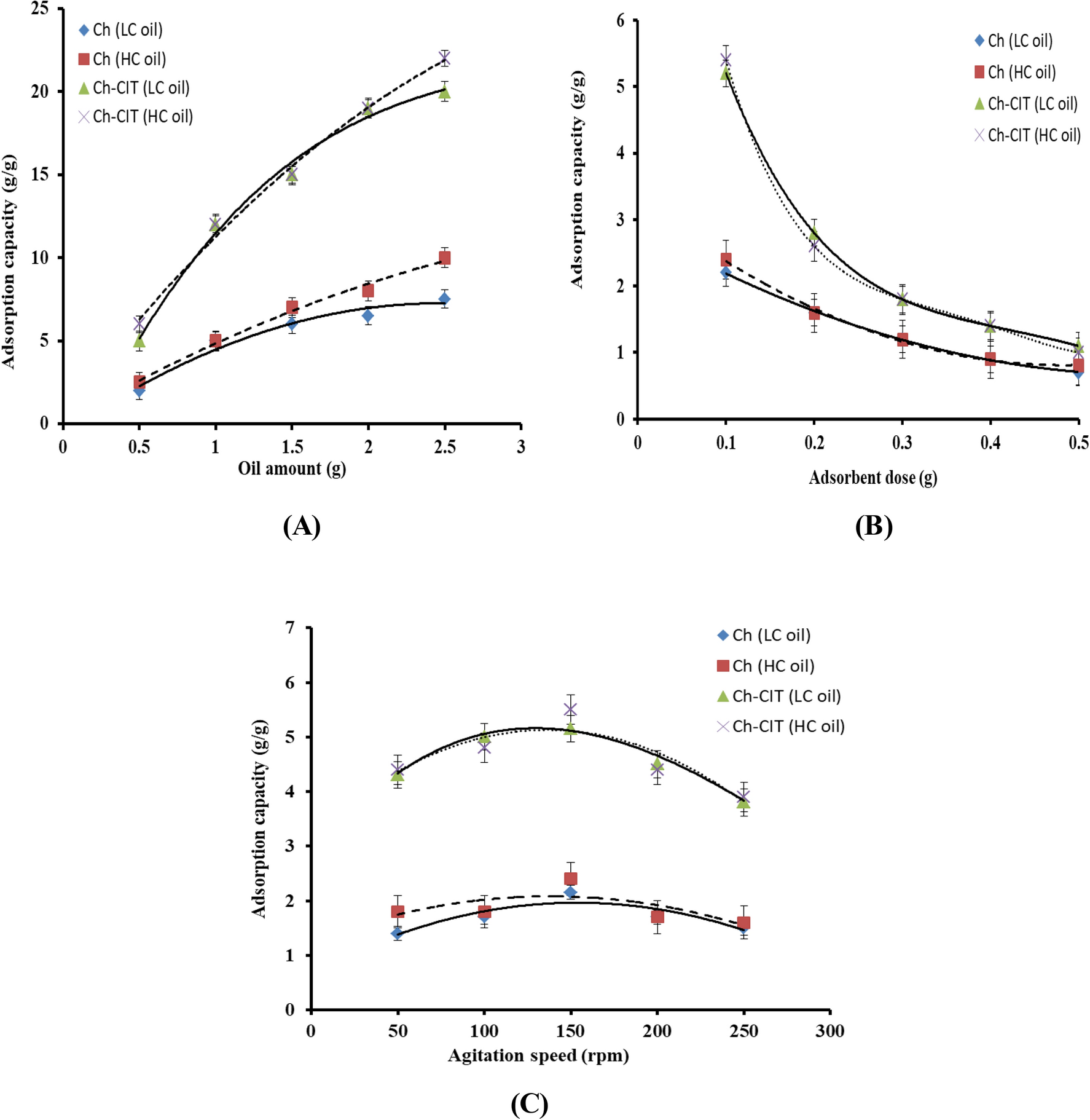

(A) Effect of oil amount, (B) effect of adsorbent dose and (C) effect of agitation speed on the oil adsorption capacity of Ch and Ch-Cit schiff base using LC and HC oils.
