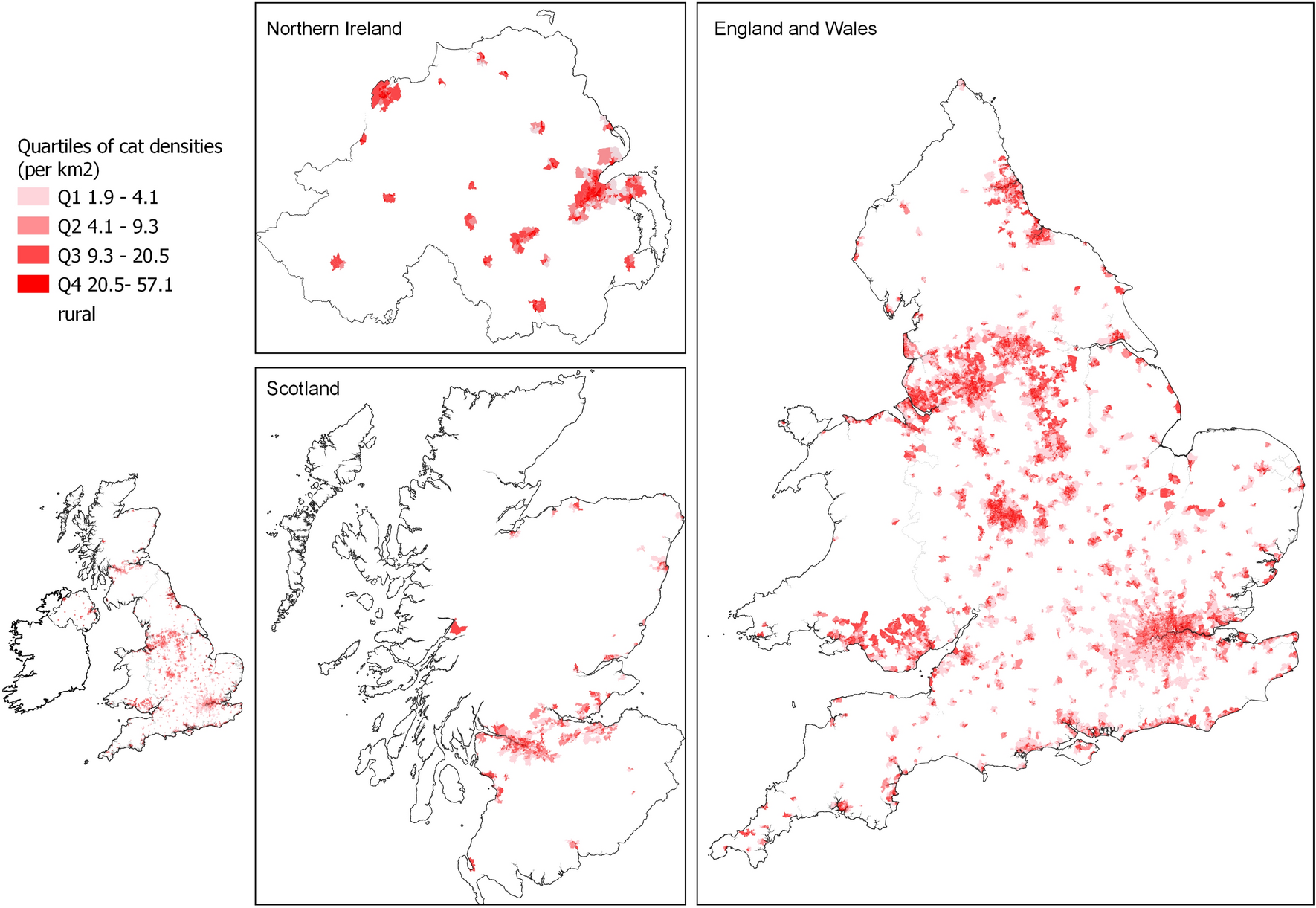

Figure 3
From: Human influences shape the first spatially explicit national estimate of urban unowned cat abundance
Density of unowned cats across urban areas in the UK. Density predicted from applying the posterior distributions of effect sizes derived from the IAM to IMD quintiles and population density for urban small area geographies. Mean values are shown. Countries are displayed separately according to their different urban geographical units. For visualisation purposes, some islands that do not include any urban areas are excluded from the plot. Map was generated using QGIS 3.16 (https://www.qgis.org).
