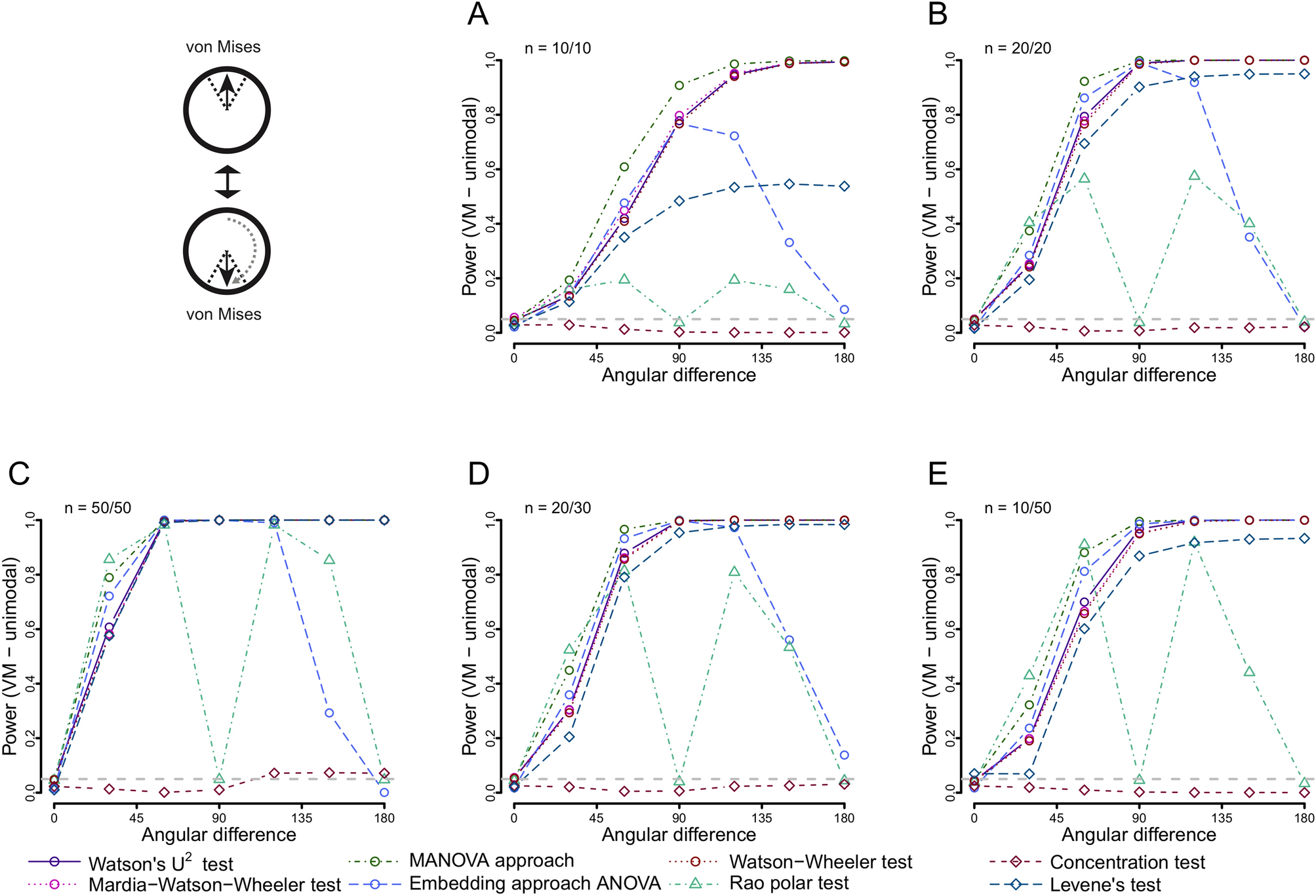

Figure 4
From: Advice on comparing two independent samples of circular data in biology
Power of all included tests when comparing von Mises distributions (kappa for both = 2) of differing directions using different sample sizes: 10 and 10 (A), 20 and 20 (B), 50 and 50 (C), 20 and 30 (D) and 10 and 50 (E). The first distribution is fixed at 0°, the second increases from 0° towards 180.
